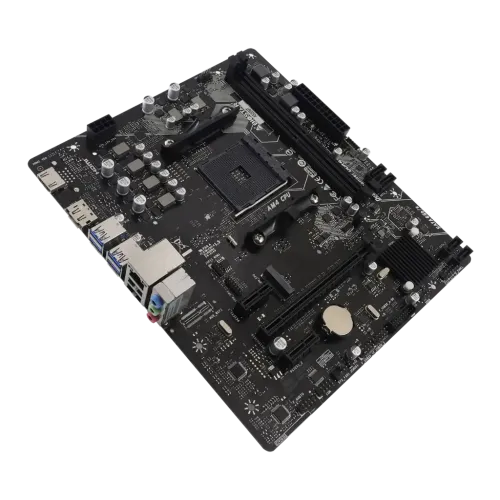

BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard

BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard (2)

BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard

Key Features
Model: A520MT
Supported CPU: Socket AM4 supports AMD Ryzen 3rd Gen (Matisse/ Renoir) & Ryzen 4th Gen (Vermeer/ Cezanne)
Supported RAM: 2 x DIMM, DDR4
Graphics Output: 1 x HDMI, 1 x DP Port
Features: 1 x M.2 Slot, Realtek Gigabit LAN

Out of stock

Add to compare

Add to wishlist

18 People watching this product now!

Specification and Description

Specification

*Brand*	*BOISTAR*
*Supported CPU*	*Socket AM4 supports AMD Ryzen 3rd Gen (Matisse/ Renoir) and Ryzen 4th Gen (Vermeer/ Cezanne) processors* *Support for future AMD Ryzen processors with BIOS update*
*Chipset*	*AMD A520*
*Form Factor*	*Micro ATX Form Factor Dimension: 23.5cm x 20.8cm ( W x L )*
*Audio*	*ALC897* *7.1 Channels, High Definition Audio, Hi-Fi (Front)*
*Expansion Slots*
*PCI*	*AMD Ryzen 5000/3000 Series Processors* *1 x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode)* or *AMD Ryzen 5000 G/4000 G Series Processors* *1 x PCIe 3.0 x16 Slot(x16 or x8/x4/x4 mode)* *AMD A520 Chipset* *2 x PCIe 3.0 x1 Slot*
*M.2 Socket*	*Supports M.2 Type 2242/ 2260/ 2280 SSD module*
*Memory*
*Type*	*DDR4*
*Slots*	*2 x DIMM*
*Supported Memory*	*4th Gen AMD Ryzen Processors (Vermeer CPUs):* *Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133* *4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs):* *Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133* *3rd Gen AMD Ryzen Processors (Matisse CPUs):* *Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133* *3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs):* *Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133*
*Maximum Memory*	*Up to 64GB*
*Graphics*
*Graphics*	*By CPU model* *Supports DX12* *Supports HDCP*
*Connector & Ports*
*HDMI*	*1 x HDMI Port*
*USB (s)*	*4 x USB 3.2 (Gen1) Ports* *2 x USB 2.0 Ports*
*LAN Port (s)*	*Realtek RTL8111H* *10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability*
*Supported Storage*	*Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports* *AMD Ryzen 5000/5000 G/4000 G/3000 Processors* *1 x M.2 (M Key) Socket (M2M_CPU):* *Supports M.2 Type 2242/ 2260/ 2280 SSD module* *Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD* *AMD A520 Chipset* *4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10*
*Audio*	*3 x Audio Jack*
*Internal I/O Ports*	*4 x SATA III (6.0Gb/s) Connectors* *2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)* *1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)* *1 x USB 3.2 (Gen2) Type-C Header* *1 x 8-Pin Power Connector* *1 x 24-Pin Power Connector* *1 x CPU Fan Connector* *1 x System Fan Connector* *1 x Front Panel Header* *1 x Front Audio Header* *1 x Internal Stereo Speaker Header* *1 x Clear CMOS Header* *1 x COM Port Header* *1 x TPM Header*
*Others*
*Bundled Software*	*BullGuard*
*Warranty Information*
*Manufacturing Warranty*	*3 Years Warranty*

Description

BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard

The BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard is a high-performance motherboard designed to meet the demands of modern computing. With its Socket AM4 support, this motherboard is compatible with AMD Ryzen 3rd Gen (Matisse/ Renoir) and Ryzen 4th Gen (Vermeer/ Cezanne) processors, ensuring optimal performance and efficiency. Featuring the AMD A520 single-chip architecture, this motherboard offers a seamless and reliable computing experience. The 2-DIMM DDR4 memory support allows for a maximum capacity of up to 64 GB, enabling smooth multitasking and efficient data processing. Equipped with Realtek Gigabit LAN, this motherboard ensures fast and stable internet connectivity, perfect for online gaming, streaming, and downloading large files. The inclusion of Front USB 3.2 Gen2 Type-C provides convenient and high-speed data transfer capabilities, allowing you to connect and transfer files effortlessly. With M.2 (32Gb/s) support, this motherboard offers lightning-fast storage options, ensuring quick access to your files and applications. Additionally, the HDMI 4K resolution support allows for stunning visuals and immersive viewing experiences, making it ideal for multimedia enthusiasts and gamers. The BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard is a reliable and feature-packed motherboard that delivers exceptional performance and versatility. Whether you’re a professional seeking a powerful computing solution or a gamer looking for an immersive gaming experience, this motherboard is sure to meet and exceed your expectations.
