Specification
| Brand | BOISTAR | |
| Supported CPU | Socket AM4 support AMD 3rd Gen Ryzen (Matisse/ Renoir) processors and Ryzen 4th Gen (Vermeer) processors
Support for future AMD Ryzen processors with BIOS update |
|
| Chipset | AMD A520 | |
| Form Factor | Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L ) | |
| Audio | ALC887
7.1 Channels, High Definition Audio, Hi-Fi (Front) |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 5000/5000 G/4000 G/3000 Processors
1 x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 Slot |
|
| M.2 Socket | Supports M.2 Type 2242/ 2260/ 2280 SSD module | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | 3rd Gen AMD Ryzen Processors (Matisse CPUs)
Supports for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200/ 2933 / 2667 / 2400 / 2133 / 1866 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs) Supports for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 |
|
| Maximum Memory | Up to 64 GB | |
| Graphics | ||
| Graphics | By CPU model
Supports DX12 Supports HDCP |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| VGA (s) | 1 x VGA Port | |
| USB (s) | 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) |
|
| LAN Port (s) | Realtek RTL8111H
10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability Supports Super LAN Surge Protection |
|
| Supported Storage | 4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 3.0 x 4 (32Gb/s) Supports SATA III (6.0Gb/s) SSD |
|
| Audio | 3 x Audio Jack | |
| Internal I/O Ports | 4 x SATA III (6.0Gb/s) Connectors
1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x Internal Stereo Speaker Header 1 x COM Port Header |
|
| Others | ||
| Special Features | Supports 100% Solid capacitor
BIO-FLASHER A.I FAN PCIe M.2 32Gb/s |
|
| Bundled Software | BullGuard | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
Description

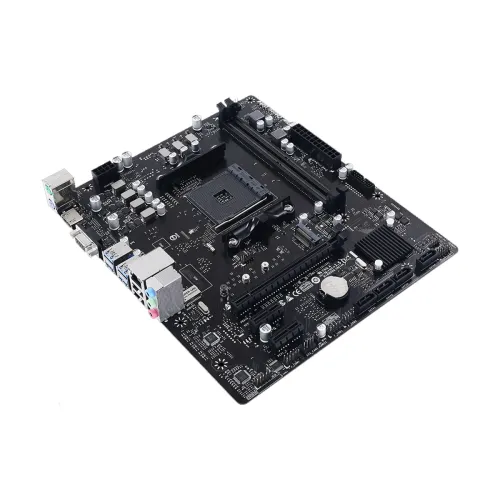

BIOSTAR A520MH DDR4 AMD AM4 Micro ATX Motherboard
The BIOSTAR A520MH DDR4 AMD AM4 Micro ATX Motherboard is a high-performance motherboard designed for AMD Ryzen processors. It offers excellent compatibility and functionality for both the 3rd Gen (Matisse/Renoir) and 4th Gen (Vermeer) Ryzen processors. With its AMD A520 single-chip architecture, this motherboard delivers reliable and efficient performance. The motherboard supports up to 2-DIMM DDR4 memory modules, with speeds of up to DDR4-4933+(OC) supported. It offers a wide range of memory frequencies, including 4800(OC), 4600(OC), 4400(OC), 4000(OC), 3800(OC), 3600(OC), 3200, 2933, 2667, 2400, 2133, and 1866, allowing users to choose the optimal configuration for their system. The BIOSTAR A520MH features USB 3.2 Gen1 ports, providing fast data transfer speeds and support for various USB devices. It also includes PCIe M.2 slots, allowing for high-speed storage solutions such as SSDs. The motherboard supports HDMI 4K resolution, enabling users to connect their systems to high-resolution displays for an immersive visual experience. The BIOSTAR A520MH DDR4 AMD AM4 Micro ATX Motherboard offers a solid foundation for building a powerful and efficient AMD Ryzen-based system. Its extensive compatibility, versatile memory support, and convenient connectivity options make it a great choice for both casual and enthusiast users.
