Specification
| Brand | Asus | |
| Type | GDDR6 | |
| Size | 12GB | |
| Resolution | 7680 x 4320 | |
| Core Clock | OC Mode – 1807 MHz (Boost Clock)
Gaming Mode – 1777 MHz (Boost Clock) |
|
| Memory Clock | 15 Gbps | |
| BUS Type | PCI Express 4.0 | |
| Memory Interface | 192-bit | |
| Stream Processors | NVIDIA Ampere Streaming Multiprocessors | |
| CUDA Cores | 3584 | |
| Interface | ||

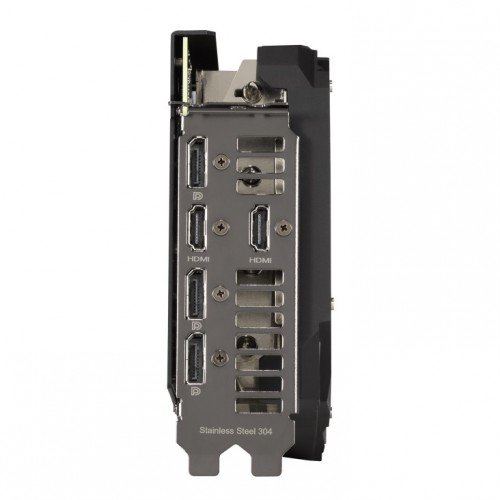

| Displayport | 3 x Native DisplayPort 1.4a | |
| HDMI | 2 x Native HDMI 2.1 | |
| HDCP | HDCP 2.3 | |
| Power Specifications | ||
| Connectors | 1 x 8-pin | |
| Recommended PSU | 750W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| OpenGL | OpenGL 4.6 | |
| Physical Specifications | ||
| Dimensions | 11.81 ” x 5.26 ” x 2.11 ” Inch
30 x 13.36 x 5.35 Centimeter |
|
| Manufacturing Warranty | 3 Years | |
Description
Asus ROG Strix GeForce RTX 3060 V2 12GB GDDR6 Gaming Graphics Card
The Asus ROG Strix GeForce RTX 3060 V2 12GB Graphics Card has been designed to push performance boundaries. It features NVIDIA Ampere Streaming Multiprocessors. It has been radically improved to accommodate the impressive new Ampere chips from NVIDIA and to deliver the next wave of gaming performance innovation to the market. You can experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance. Axial-tech Fan Design has been tuned up with more fan blades and a reversed rotational direction for the center fan. A fresh design and more metal surround a grouping of Axial-tech fans. The two side fans spin counterclockwise to reduce turbulence. And to eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low. The heat spreader draws heat up into heat pipes that carry it through a fin stack that fills a large 2.7-slot footprint. Increasing the heatsink size compared to the last generation provides more thermal headroom to account for the new high-performance chipset. The extra flatness allows for better contact with the die for improved thermal transfer. The PCB has some new tricks up its sleeves, and even the backplate has received some performance-boosting changes. A wide backplate vent and shortened PCB allows hot air to escape towards chassis exhaust fans instead of being recycled by the GPU circulating cooler design. A GPU bracket provides extra stability to the critical connection between the die and the heat spreader. The I/O bracket is made from stainless steel to protect ports and provide a more secure mount. Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages. The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card. Asus ROG Strix GeForce RTX 3060 V2 comes with 3 Years Warranty.
