Specification
| Brand | ASRock | |
| Supported CPU | – Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700)
– Supports Intel Hybrid Technology – Supports Intel Turbo Boost Max 3.0 Technology – Supports Intel Thermal Velocity Boost (TVB) – Supports Intel Adaptive Boost Technology (ABT) |
|
| Chipset | Intel Z790 | |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio |
|
| Expansion Slots | ||
| PCI | CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: – 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode – 1 x PCIe 3.0 x1 Slot (PCIE2) – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – Supports AMD CrossFire |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DDR4 DIMM Slots | |
| Supported Memory | – Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)
– Supports ECC UDIMM memory modules (operate in non-ECC mode) – Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | – Intel Xe Graphics Architecture (Gen 12)
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| USB (s) | – 1 x USB 3.2 Gen2 Type-A (Rear)
– 1 x USB 3.2 Gen2 Type-C (Rear) – 1 x USB 3.2 Gen1 Type-C (Front) – 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) – 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection |
|
| LAN Port (s) | – Gigabit LAN 10/100/1000 Mb/s
– Intel I219V |
|
| Supported Storage | CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes – 4 x SATA3 6.0 Gb/s Connectors |
|
| RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
|
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Ports | – 1 x Chassis Intrusion and Speaker Header
– 1 x RGB LED Header – 3 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin) – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Others | ||
| Special Features | Rock-Solid Durability
– 10+1+1 Power Phase, 50A Dr. MOS for VCore+GT – Pre-Installed I/O Shield EZ Update – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker |
|
| Bundled Software | Software
– ASRock Motherboard Utility (Phantom Gaming Tuning) – ASRock Polychrome SYNC – ASRock X Fast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer |
|
| Manufacturing Warranty | 3 years | |
Description

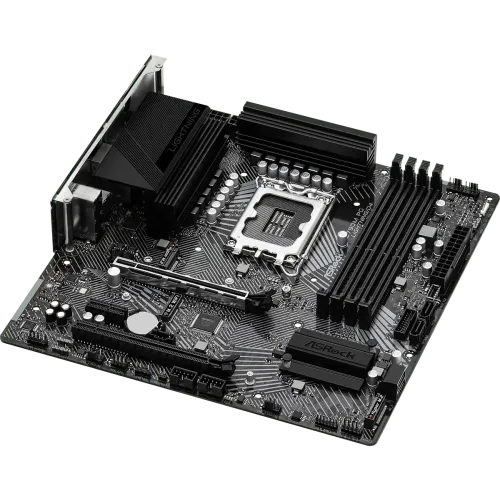

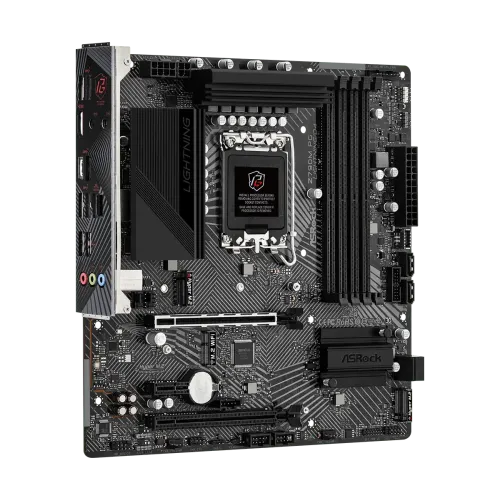

ASRock Z790M PG Lightning/D4 Micro ATX Motherboard
ASRock Z790M PG Lightning/D4 motherboard supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700), 10+1+1 Phase Power Design, Dr. MOS for VCore+GT. It comes with 4 x DDR4 DIMMs and supports up to 5333+(OC). This Motherboard features 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi. It comes with 1 HDMI graphics output option. The ASRock Z790M PG Lightning/D4 offers 7.1 CH HD Audio (Realtek ALC897 Audio Codec), and Nahimic Audio. It comes with 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3. It comes with 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front), and Intel 1G LAN. The latest PCI Express 5.0 is capable of performing a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards. ASRock Z790M PG Lightning/D4 13th Gen Micro ATX Motherboard features via USB, Wi-Fi, analog output, or even HDMI, Nahimic Audio, which offers you the most engaging listening experience, vibrant and rich with details. This ASRock Z790M PG Lightning/D4 motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD. This 13th Gen ASRock motherboard is also capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. The latest ASRock Z790M PG Lightning/D4 Motherboard comes with a 03 years warranty.
