Specification
| Brand | ASRock | |
| Supported CPU | – Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
– Digi Power design – 8 Power Phase design – Supports Intel Turbo Boost Max 3.0 Technology |
|
| Chipset | – Intel B560 | |
| BIOS | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCSA,VCCIO Multi-adjustment |
|
| Form Factor | – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– Solid Capacitor design |
|
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection – Nahimic Audio |
|
| Expansion Slots | ||
| PCI | 11th Gen Intel Core Processors
– 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3)) 10th Gen Intel Core Processors – 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3)) – 1 x PCI Express 3.0 x1 Slot – Supports AMD Quad CrossFireX and CrossFireX |
|
| M.2 Socket | – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) | |
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DDR4 DIMM Slots | |
| Supported Memory | – 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
– 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC) – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Maximum Memory | – Max. the capacity of system memory: 128GB | |
| Graphics | ||
| Graphics | – 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
– Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 – Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc – Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers – Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) – Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports – Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| Displayport (s) | 1 x DisplayPort 1.4 | |
| USB (s) | Connector:
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) Rear Panel I/O: – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) |
|
| LAN Port (s) | – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Supported Storage | – 6 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
– 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only) – 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
|
| Audio | Connector:
– 1 x Front Panel Audio Connector Rear Panel I/O: – HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Internal I/O Ports | Connector:

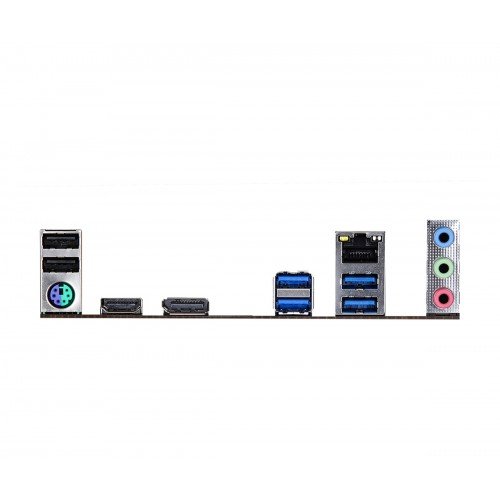

– 1 x Chassis Intrusion and Speaker Header – 2 x RGB LED Headers – 2 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin) – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) Rear Panel I/O: – 3 x Antenna Mounting Points – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| TPM (Trusted Platform Module ) | – 1 x SPI TPM Header | |
| Others | ||
| Bundled Software | – ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC – ASRock X Fast LAN |
|
| Manufacturing Warranty | 03 years warranty | |
Description

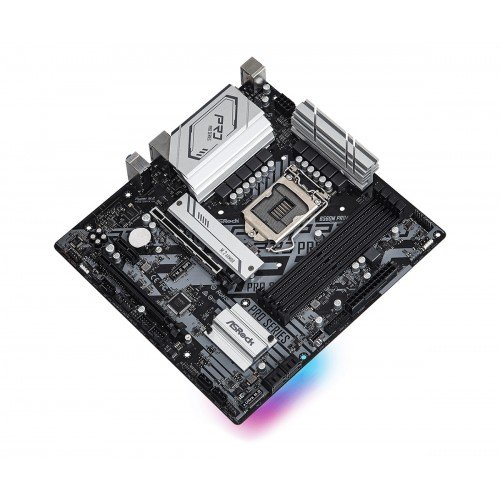

ASRock B560M Pro4 10th and 11th Gen Micro ATX Motherboard
ASRock B560M Pro4 Micro ATX Motherboard Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors, 8 Phase Power Design, Supports DDR4 4800MHz (OC), Intel Gigabit LAN ASRock Polychrome SYNC. This motherboard featured with 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi, Graphics Output Options: HDMI, DisplayPort, 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio. The motherboard comes with 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3), 7 x USB 3.2 Gen1 (4 x Rear, 2 x Front, 1 Front Type-C), 6 x USB 2.0 (2 x Rear, 4 x Front). Here, Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver the ultimate network experience to users. For using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming so that each sound is properly positioned in 360° on a radar for a full immersion during the game. This motherboard comes with Dual Graphics Outputs – HDMI + DisplayPort combo, you have more graphics output options now. And also this motherboard also supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. The new ASRock B560 Pro4 10th and 11th Gen ATX Motherboard features sturdy components and completely smooth power delivery to the CPU and also offers enhanced performance with the lowest temperature for advanced gamers. ASRock premium 50A power chokes effectively make the saturation current up to three times better, as well as providing enhanced and improved V core voltage to the motherboard, compared to traditional chokes. For ASRock BFB (Base Frequency Boost) Technology, you may install their non K series CPUs to ASRock selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. And also, while ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig. This ASRock B560 Pro4 is capable of accommodating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD and capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way. They offer a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. In this motherboard, the reinforced steel slot comes with the next-generation PCI Express 4.0 standard. The various benefits include, like- Extra anchor points, Stronger latch, Ensure signal stability, Make sure heavy graphics cards to be well-installed. This supports water pumps. This header provides a maximum of 2A power for supporting the most popular water pumps. You can also adjust the voltage of the water pump to get higher cooling performance with lower noise. ASRock Full Spike Protection includes various technologies to prevent your motherboard components from being damaged by unexpected voltage spikes. Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. This ASRock B560M Pro4 10th and 11th Micro ATX Motherboard comes with 03 years of warranty
