ARKTEK AK-H410M EG 10th Gen Micro-ATX Motherboard - Image 1

ARKTEK AK-H410M EG 10th Gen Micro-ATX Motherboard - Image 2

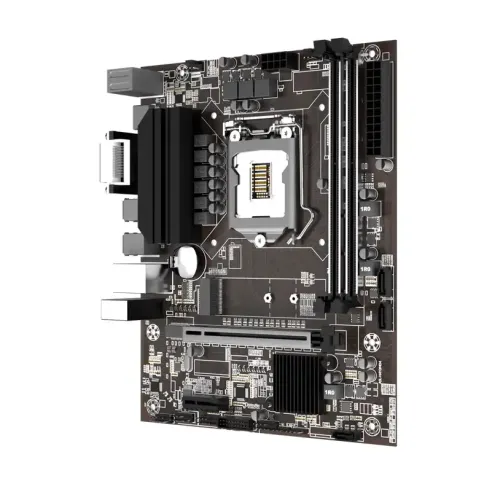

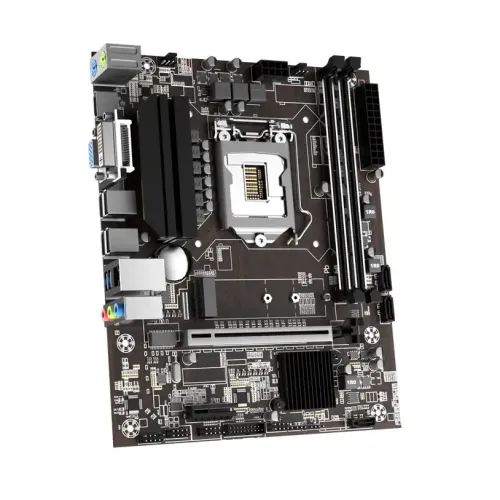

ARKTEK AK-H410M EG 10th Gen Micro-ATX Motherboard

Key Features
Model: AK-H410M EG
Graphics Output: 1 x VGA, 1 x HDMI
Features: Onboard Realtek 1000Mbps
Supported RAM: 2x DIMM, DDR4 2400/2666/2933MHz Max. 64GB
Supported CPU: Core i9/Core i7/Core i5/Core i3/Pentium/Celeron (LGA1200)

Out of stock

Add to compare

Add to wishlist

10 People watching this product now!

Specification and Description

Specification

*Brand*	ARKTEK
*Supported CPU*	*Support Intel 10th Generation CPU: Core i9/Core i7/Core i5/Core i3/Pentium/Celeron series processors for LGA 1200 socket*
*Chipset*	*Intel H410 Chipset*
*Form Factor*	*Micro-ATX (18 x 22 cm)*
*Audio*	*3.5mm Port, 5.1 Channel, LED Audio Support*
*Expansion Slots*
*PCI*	**1 x PCI Express x16 slot 1 PCI Express x1 slot***
*Memory*
*Type*	*DDR4*
*Slots*	*2 x Memory Slots*
*Supported Memory*	*Dual Channel DDR4 2400/2666/2933MHz*
*Maximum Memory*	*Up to 64GB*
*Graphics*
*Graphics*	*Integrated Graphics Processor-Intel HD Graphics support*
*Connector & Ports*
*HDMI*	*1 x HDMI port*
*VGA (s)*	*1 x VGA port*
*USB (s)*	*2 x USB 2.0 port* *2 x USB 3.0 port*
*Supported Storage*	*4 x SATA 3.0 port, 1 x M.2 port, PCI-E 3.0 x4/SATA 3.0 SSD port adaptable*
*Audio*	*3 x Audio jack*
*Internal I/O Ports*	*2 x USB2.0* *1 x USB3.0* *1 x System Fan* *1 x TCS CPU Fan*
*Warranty Information*
*Manufacturing Warranty*	*2 years*

Description

ARKTEK AK-H410M EG 10th Gen Micro-ATX Motherboard

The ARKTEK AK-H410M EG 10th Gen Micro-ATX Motherboard supports Intel 10th Generation CPUs, including Core i9, Core i7, Core i5, Core i3, Pentium, and Celeron series processors, for the LGA 1200 socket. It features the Intel H410 chipset and integrated Intel HD Graphics support. The motherboard supports dual-channel DDR4 memory with speeds of 2400/2666/2933MHz, with a maximum capacity of up to 64GB. It offers two memory slots and onboard Realtek 1000Mbps LAN. The audio features include a 3.5mm port, 5.1 channel support, and LED audio support. Storage options include four SATA 3.0 ports, one M.2 port, and a PCI-E 3.0 x4/SATA 3.0 SSD port. The motherboard provides a range of I/O ports, including PS/2 mouse and keyboard ports, VGA and HDMI ports, USB 2.0 and USB 3.0 ports, RJ45 LAN port, and audio jacks. Internal connectors consist of USB 2.0 and USB 3.0 headers, system fan header, and TCS CPU fan header. Expansion slots include one PCI Express x16 slot and one PCI Express x1 slot. With a micro-ATX form factor measuring 18 x 22 cm, the AK-H410M EG is suitable for compact PC builds and offers six mounting holes for secure installation. It is compatible with Windows 7, 8, 8.1, and 10 (x64) operating systems.
