Specification
| Display | |
| Brand | Apollo |
| Display | LED: Input, Inverter, Bypass, Battery, Output, Status
LCD: I/O Voltage, Frequency, Power Factor, Battery Voltage, Current, Battery Status, Load Percentage,UPS Status, History Record |
| Battery And Power | |
| Volt Ampere (VA) | (VA/Watts) 15KVA/ 13.5 KW |
| Efficiency (Approx.) | >89% |
| Rated Voltage | 200/220/230Vac |
| Battery Voltage | 384Vdc |
| Input | Voltage Range: 380/400/415Vac (380-25% 415+20%), (3Ph+N+PE) |
| Output | Frequency: 50/60Hz (± 0.05%) |
| Power | >0.9(With Filter) |
| Networking & Connectivity | |
| Frequency | Operating Frequency Range: 50/60Hz (±5Hz) |
| Ports | |
| Interface | Dry Contact, RS232, RS485, SNMP Card (Optional) |
| Special Features | |
| Protection | Voltage Protection Range: Upper Limit: +20% (+10%, +15%, +20% Adjustable)
Lower Limit: -40%, -20%, -30%, -40% Adjustable) Frequency Protection Range: ± 10% (±2.5%, ±5%, ±10%, ±20% Adjustable) |
| Physical Specification | |
| Humidity | <1500m |
| Temperature | Operating: 0~40°C
Storage: -25°C ~ 55°C (Non ─ Condensing) |
| Dimension | 570 X 800 X 1195mm |
| Weight | 217 |
| Others | |
| Other Features | Harmonic Distortion (THD) <3% (Linear Load)
Crest Factor 3:1 (Max.) Rated Frequency: 50/60Hz Transfer Time: Oms (Line Mode ↔ Battery Mode) Harmonic Filter, SNMP Adapter, LBS Cables, Battery Temperature Sensor, Bypass Current-Sharing Inductor |
| Warranty Information | |
| Warranty | 1 Year |

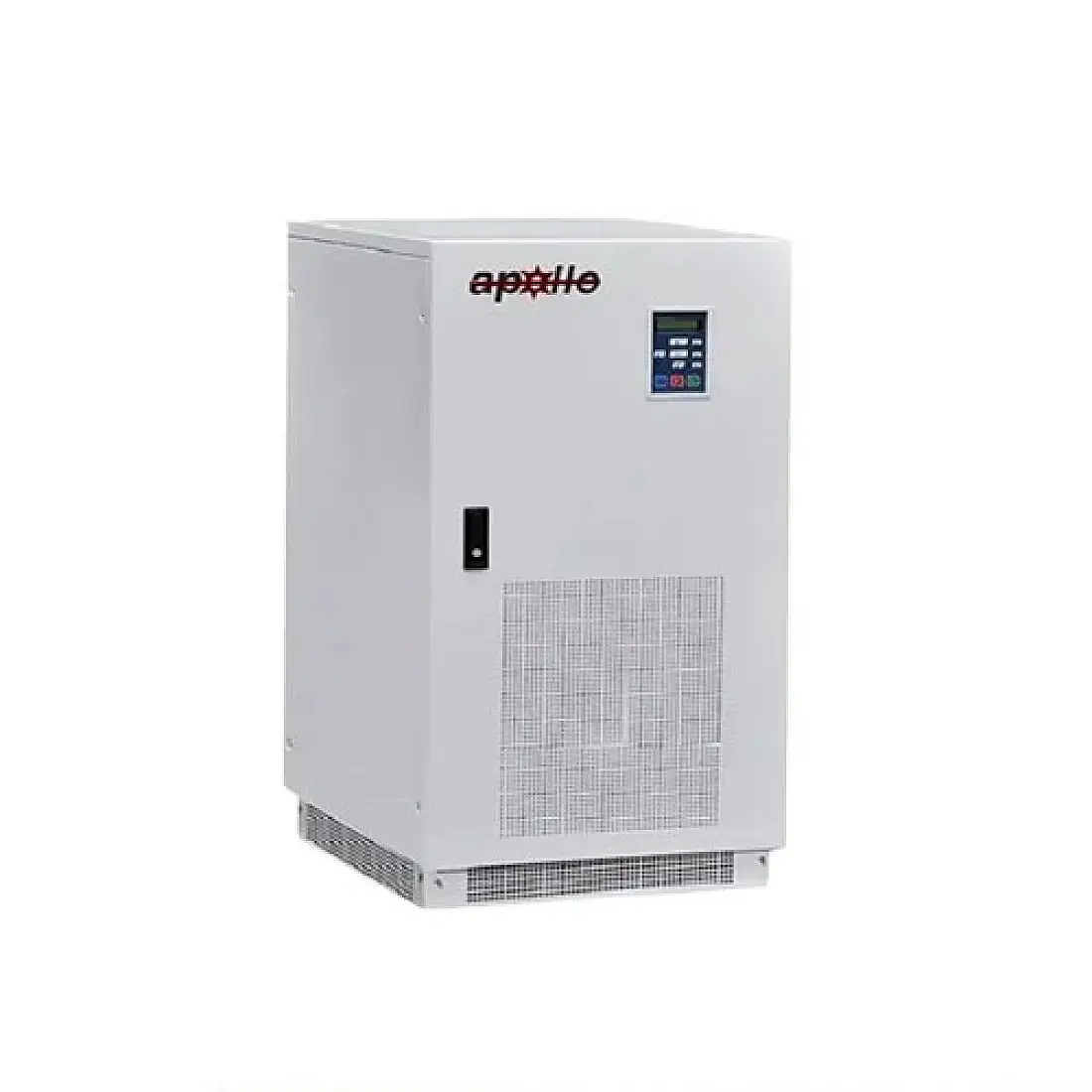

Apollo 2B15K-L 15000VA Online UPSÂ
Apollo 2B15K-L 15000VA Online UPS, a high-performance power backup solution designed to ensure uninterrupted power supply for your critical equipment, is now offered at TechLand BD. This robust UPS, boasting a capacity of 15KVA or 13.5 KW, is engineered to deliver reliable power protection in demanding environments. With a wide operating voltage range of 380/400/415Vac and a frequency range of 50/60Hz, it accommodates various power inputs, ensuring compatibility with different setups. The UPS features advanced output voltage regulation, maintaining stable output voltage at 200/220/230Vac with minimal deviation. Equipped with a battery voltage of 384Vdc, it offers seamless transfer between line and battery mode, ensuring continuous operation without interruption. The UPS comes with comprehensive system features including overload protection, LED and LCDs for real-time monitoring, and various communication interfaces such as RS232, RS485, and SNMP card (optional), enabling remote monitoring and management. Designed with environmental considerations in mind, it operates within a wide temperature range of 0~40°C and emits low noise levels, making it suitable for diverse settings. With dimensions of 570 x 800 x 1195mm and a net weight of 217 kg, this UPS combines compactness with robustness, offering ease of installation and maintenance. Compliant with international safety and EMC standards, including IEC/EN 62040-1 and IEC/EN 60950-1, this UPS guarantees reliability and peace of mind for your critical power needs. Trust in the quality and performance of the Apollo 2B15K-L 15000VA Online UPS, available now at TechLand BD, to safeguard your valuable equipment from power disruptions and ensure uninterrupted operations.
