Specification |
|
| Brand Apollo | |
| Display | |
| Display | LED: Input, Inverter, Bypass, Battery, Output, Status
LCD: I/O Voltage, Frequency, Power Factor, Battery Voltage, Current, Battery Status, Load Percentage, UPS Status, History Record |
| Battery And Power | |
| Volt Ampere (VA) | 20000VA |
| Rated Voltage | 200/220/230Vac |
| Battery Voltage | 384Vdc |
| Output | Voltage: 200/220/230Vac (± 1%) |
| Networking & Connectivity | |
| Frequency Range | 50/60Hz (±5Hz) |
| Frequency | Output: 50/60Hz (± 0.05%) |
| Ports | |
| Interface | Dry Contact, RS232, RS485, SNMP Card (Optional) |
| Technical Info | |
| Transfer Method | Oms (Line Mode ↔ Battery Mode) |
| Physical Specification | |
| Load Capacity | 110% / 60 min, 125% / 10 min, 150% / 1min |
| Temperature | Operating: 0~40°C Storage: -25°C ~ 55°C (Non ─ Condensing) |
| Operating Voltage | 380/400/415Vac (380-25% 415+20%), (3Ph+N+PE) |
| Dimension | 570 X 800 X 1195mm |
| Weight | 273 Kg |
| Others | |
| Other Features | Harmonic Distortion (THD): <3% (Linear Load)
Crest Factor: 3:1 (Max.) Efficiency: >89% Rated Frequency: 50/60Hz Voltage Protection Range: Upper Limit: +20% (+10%, +15%, +20% Adjustable) Lower Limit: -40%, -20%, -30%, -40% Adjustable) Frequency Protection Range: ± 10% (±2.5%, ±5%, ±10%, ±20% Adjustable) |
| Warranty Information | |
| Warranty | 1 Year |

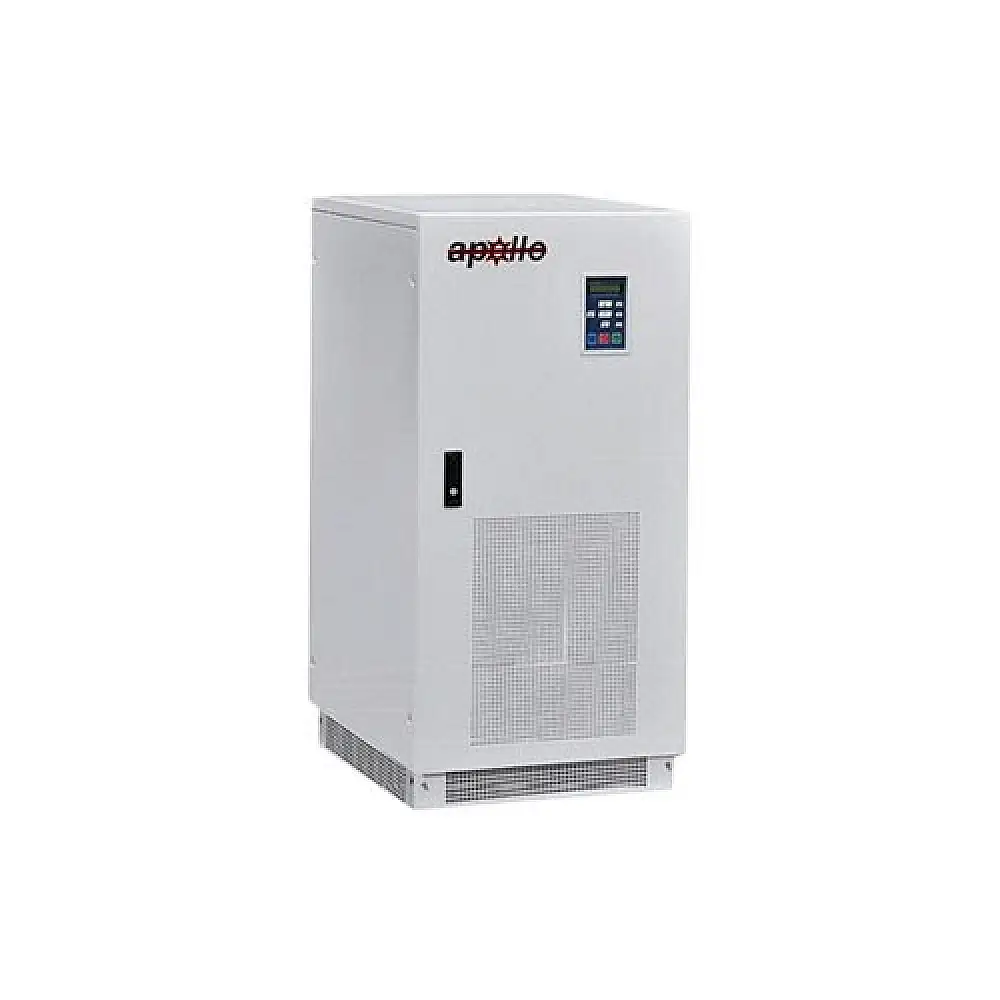

Apollo 20000VA Online UPS 3×1 Phase in Bangladesh
Apollo 20 KVA Online UPS (3×1 Phase), a cutting-edge power solution now exclusively available at TechLand BD. Engineered with precision and reliability in mind, this powerhouse of a UPS delivers an impressive capacity of 20000VA/18KW, ensuring uninterrupted power backup for your critical systems. With its wide operating voltage range of 380/400/415Vac and an operating frequency range of 50/60Hz, the Apollo UPS effortlessly adapts to diverse electrical environments, guaranteeing seamless performance even in the face of fluctuating power conditions. Boasting an exceptional power factor of >0.9 and maintaining output voltage stability within a narrow ±1% range, alongside minimal harmonic distortion of <3% under linear load, this UPS ensures clean, stable, and reliable power delivery to your valuable equipment, safeguarding them against potential damage or data loss. Featuring a lightning-fast transfer time between line mode and battery mode, this UPS eliminates downtime and ensures continuous operation of your critical systems during power outages or fluctuations. Its intuitive LED and LCDs provide real-time monitoring of vital parameters such as input/output voltage, frequency, power factor, battery status, and more, enabling easy management and troubleshooting. For enhanced connectivity and control, the Apollo UPS offers various communication interfaces including dry contact, RS232, RS485, and an optional SNMP card. Compliant with stringent international standards such as IEC/EN 62040-1, IEC/EN 60950-1 for safety, and IEC/EN 602040-2, IEC61000-4 series for EMC, this UPS is designed to meet the highest quality and reliability standards. With its rugged construction, efficient cooling system, and an operating temperature range of 0~40°C, this UPS is built to thrive in diverse environmental conditions, ensuring unwavering performance when you need it most. Whether for commercial or industrial applications, the Apollo 20 KVA Online UPS sets the benchmark for power reliability and performance, making it the ultimate choice for businesses seeking robust power backup solutions. Don’t miss out on this state-of-the-art UPS system, available exclusively at TechLand BD
