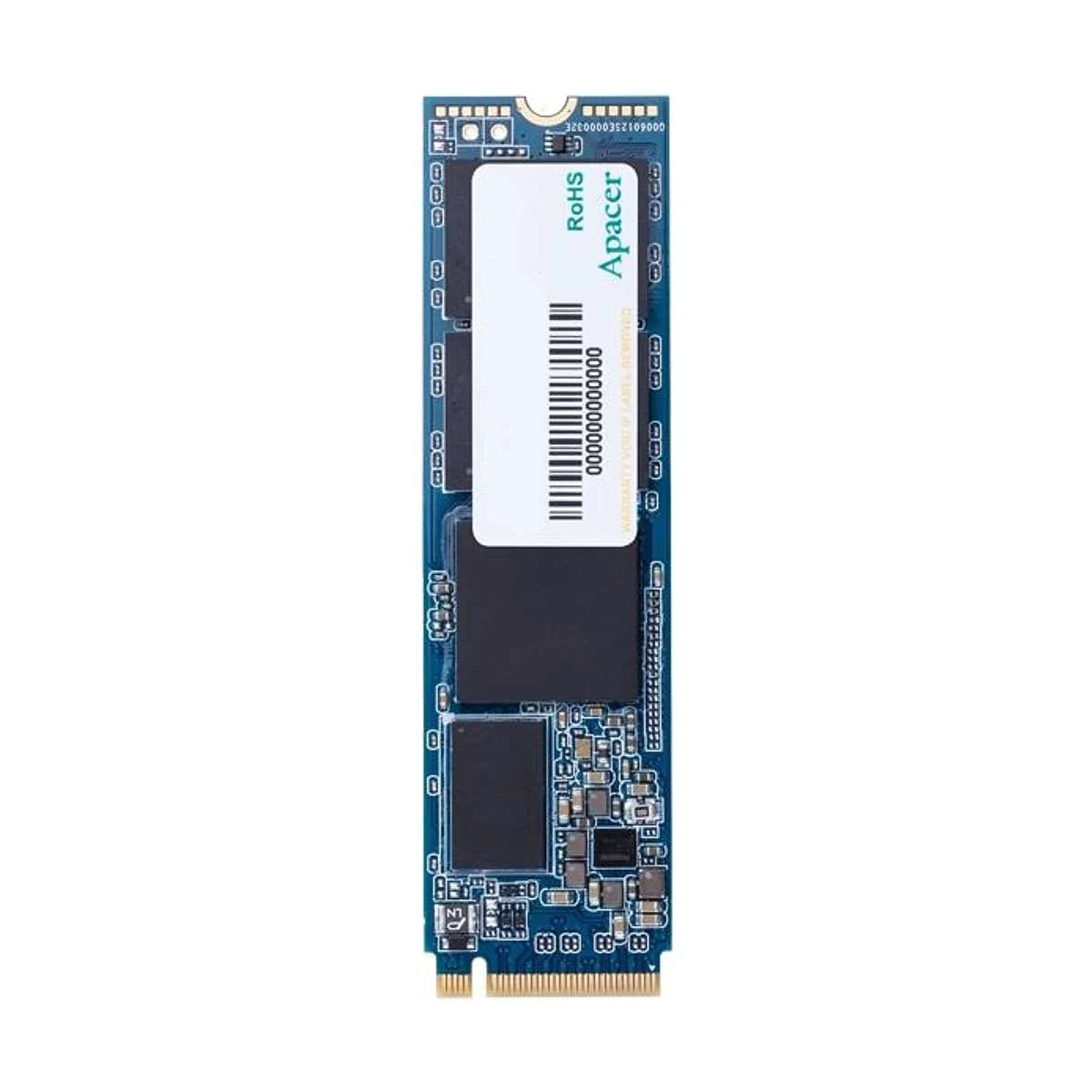

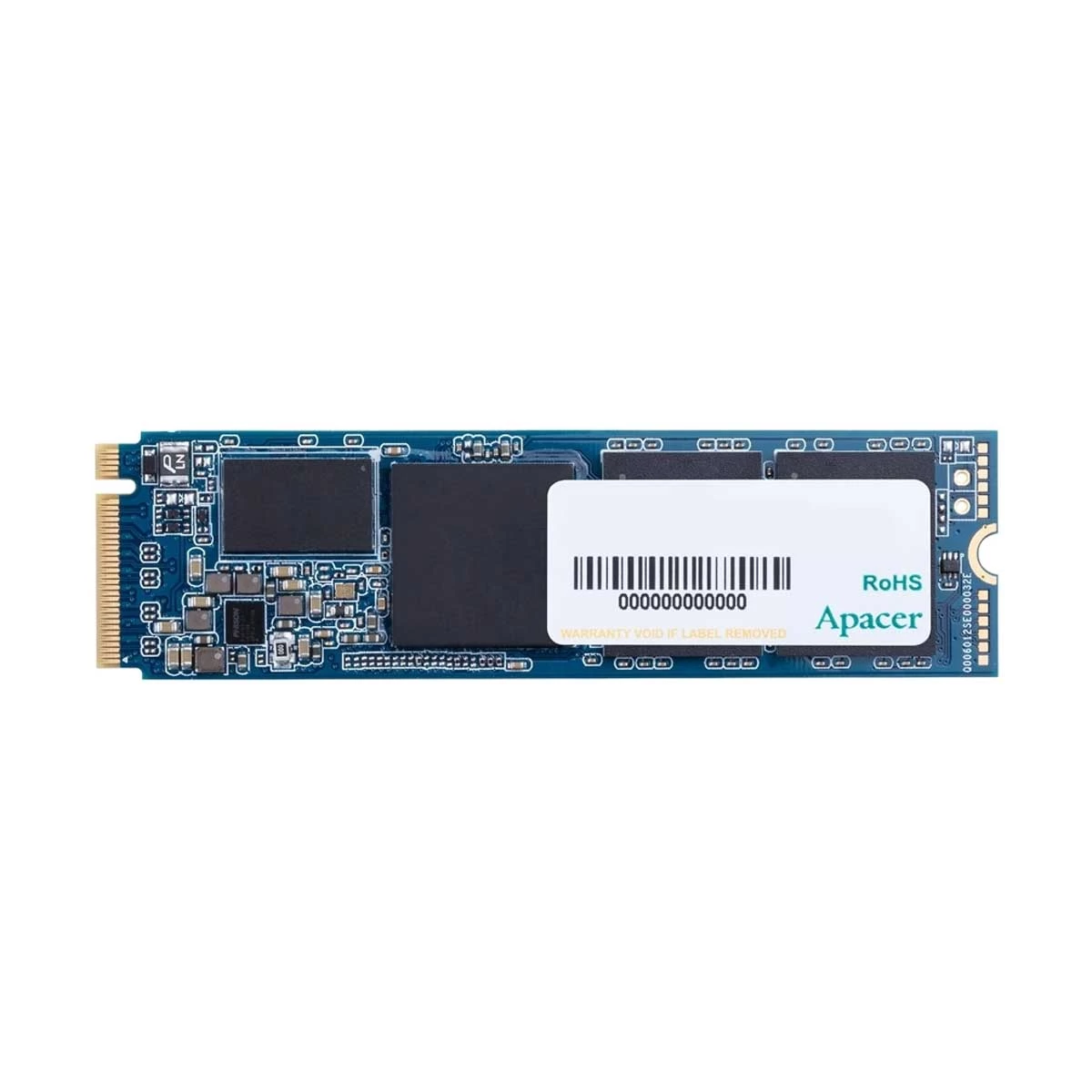

Apacer AS2280P4 256GB M.2 2280 PCIe SSD

Specification

Brand

Apacer

Model

Apacer AS2280P4

Type

Internal SSD

Part No

AP256GAS2280P4-1

Storage & Interface

Storage

256GB

Interface Mode

NVMe

Interface(s)

PCIe Gen3 x4

PCIe/NVMe Generation

Gen3

Flash Type

3D TLC NAND

Performance

Read Speed (Max.)

3000MB/s

Write Speed (Max.)

2000MB/s

Random Read IOPS

165K

Random Write IOPS

265K

Main Features

Shock Sensor

Yes

Shock Resistance

1500G/0.5msec

Shockproof

Yes

Vibration Resistance

Yes

TRIM Support

Yes

S.M.A.R.T Support

Yes

ECC Support

Up to 72bit/1KB

MTBF

1,500,000 hours

Technical Info

Operating Voltage

3.3 V

Approx. Power Consumption

15W

OS Compatibility

Windows 11/ 10

Physical Description

Form Factor (Inch)

M.2 2280

Color

Black

Dimensions

80 x 22 x 2.38 mm

Weight

6.80 gm

Warranty

Warranty Details

3 year

Additional Info

Others

4000 mW (Active mode), 70mW (Power State), Vibration: 7 – 800Hz, 3.08Grms, Operating Temperature: 0 degree C – 70 degree C, Storage: -40 degree C – 85 degree C, Supply Voltage: 3.3 V +- 5%, Connector Type: 75-pin M.2 module pinout, Frequency: 20Hz – 80Hz, Certificate: KCC, CE, FCC, VCCI, RCM, BSMI, TBW: 200TB

Specialty

The AS2280P4 SSD has built-in protection technology to ensure data integrity and stability. It is definitely the top choice for ultra-thin Laptops, esports consoles, and mini-PCs.

Country Of Origin

Taiwan

Made in/ Assemble

Taiwan

3 Years Warranty

Description

Apacer AS2280P4 256GB SSD

The 22mm x 80mm Apacer AS2280P4 256GB ultra-compact body accommodates up to 256GB of space for storing, while the ultra-thin version is merely 2.25mm, which provides gamers more room for his or her other creative set-ups and modifications. it’s definitely the highest choice for ultra-thin notebooks, esports consoles, and mini-PCs.Apacer AS2280P4 256GB To ensure users of an ideal high-speed experience, the AS2280P4 SSD has built-in protection technology to make sure data integrity and stability, keeping it stable and fast for longer.

Apacer AS2280P4 256GB’s proprietary SSD tuning technology now boosts read-write speeds to 3000/2000 MB/s and IOPS to 360,000 operations per second—by far the simplest performance during this bracket.
