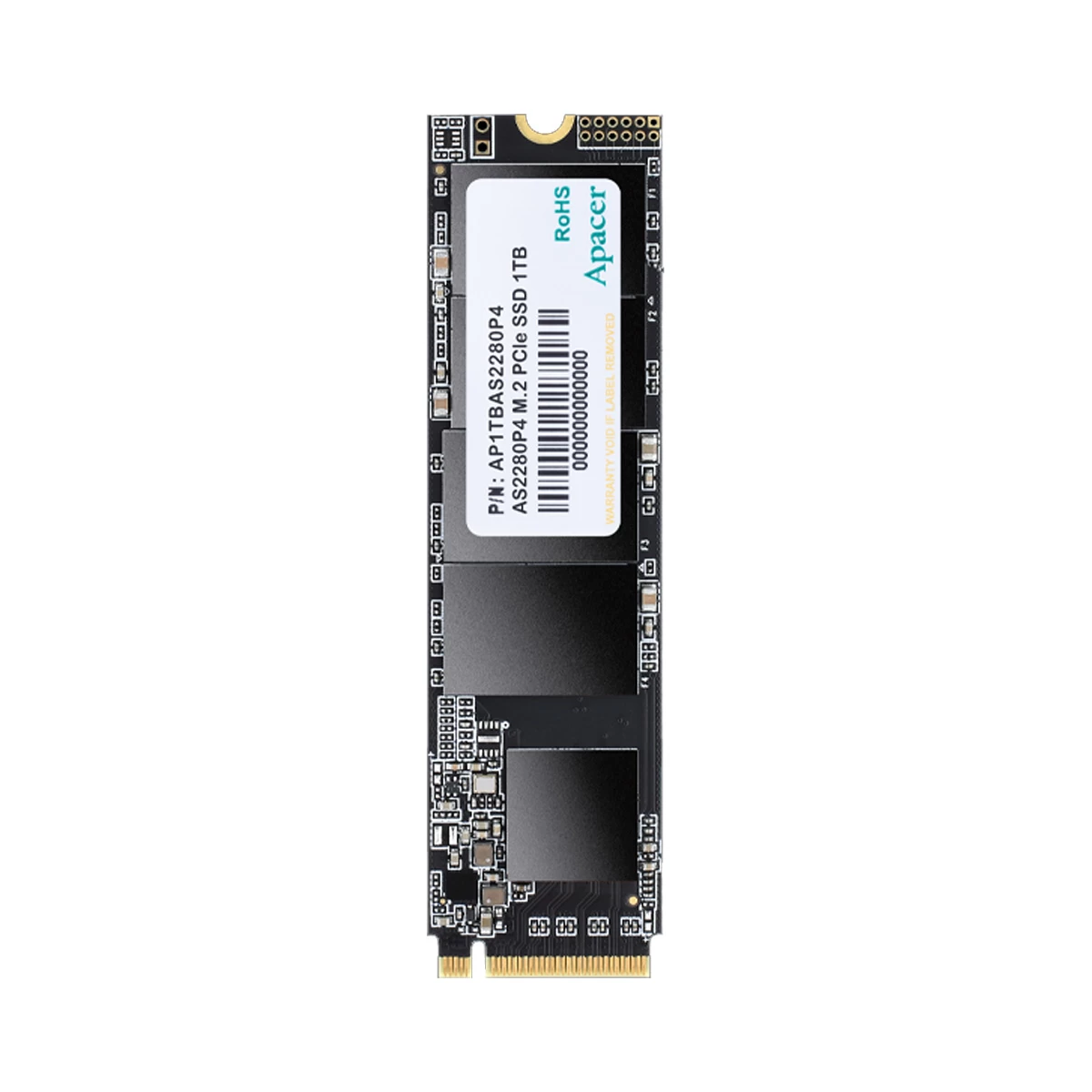

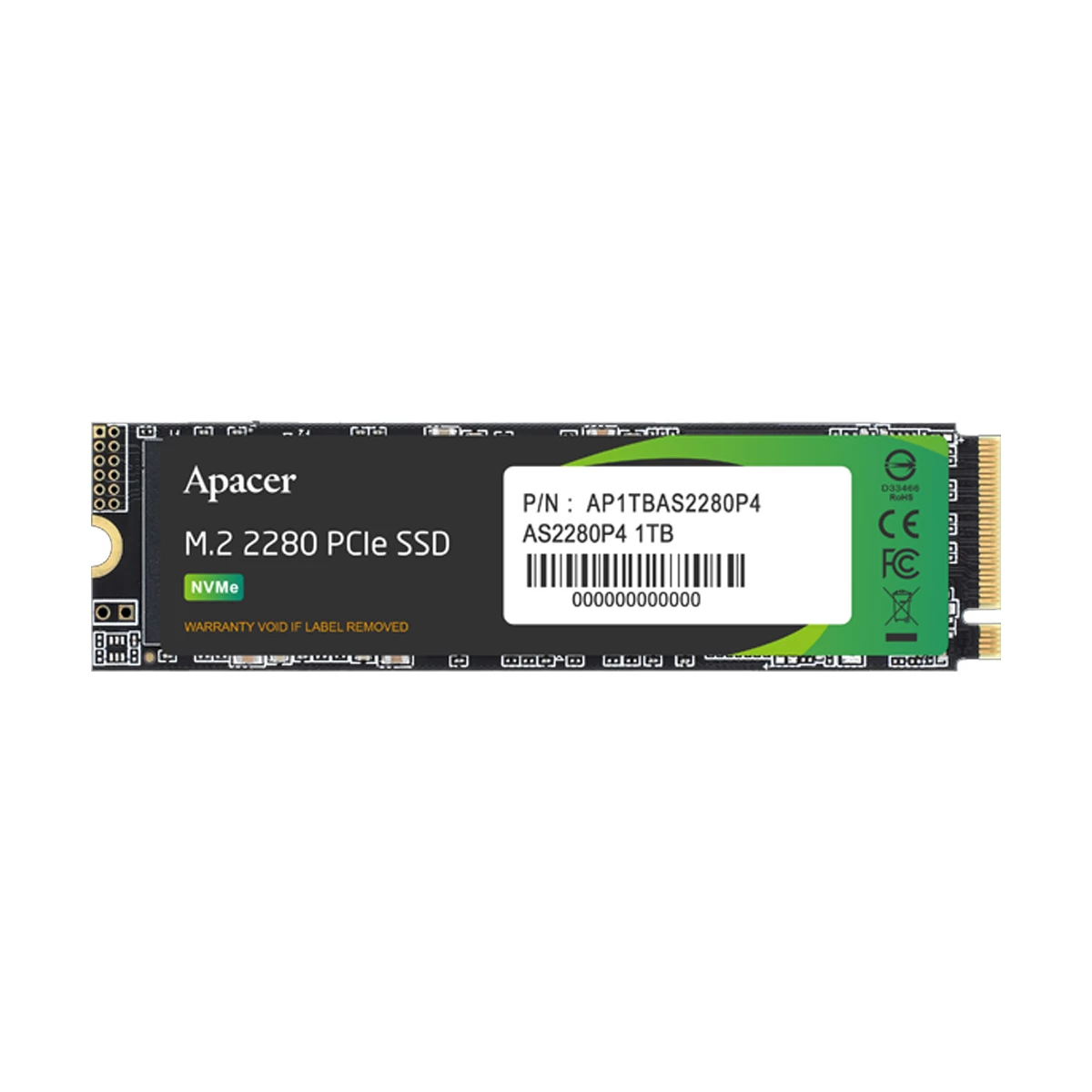

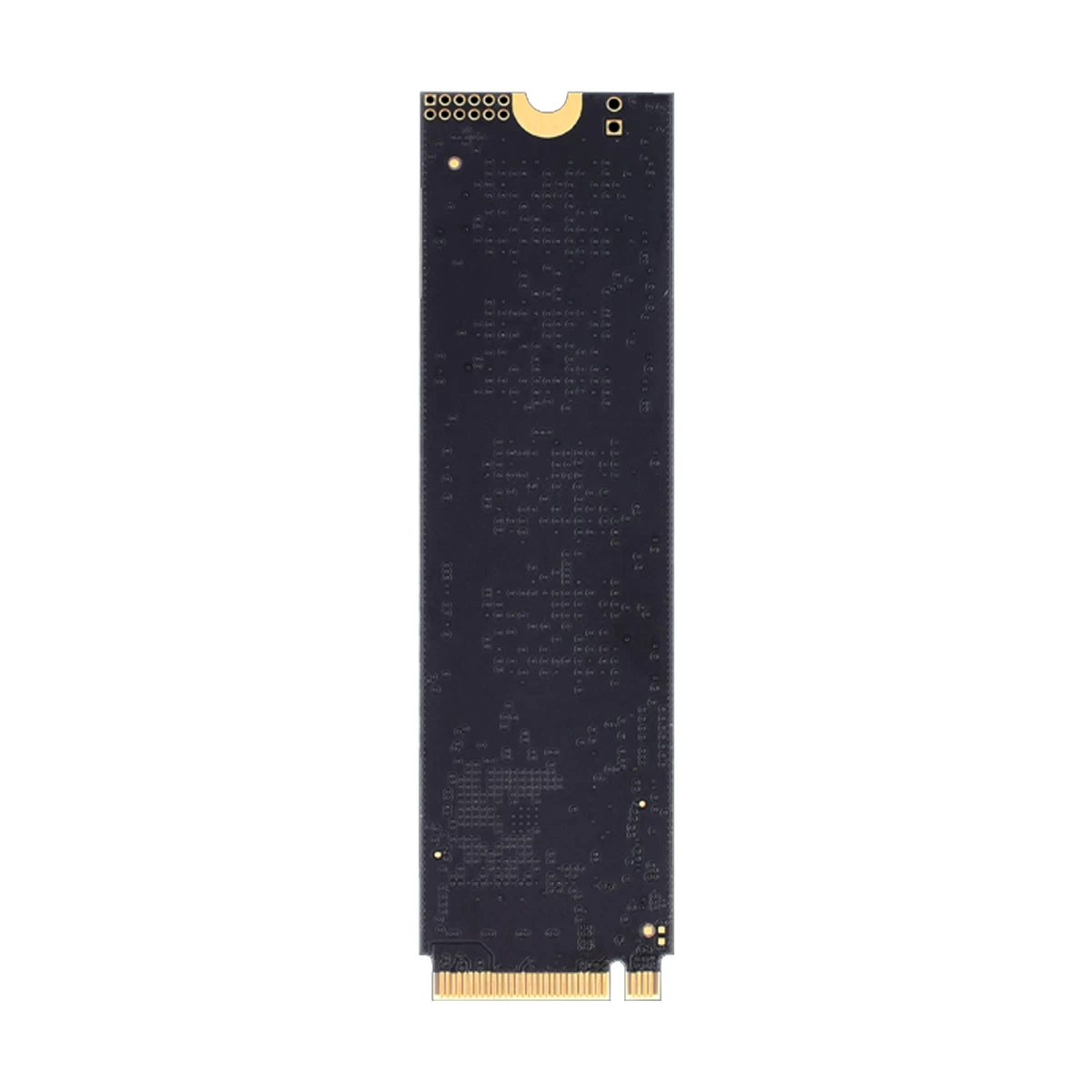

Apacer AS2280P4 1TB M.2 2280 SSD

Brand

Apacer

Model

Apacer AS2280P4

Type

M.2 2280 PCIe Gen3 x4 NVMe SSD

Part No

AP1TBAS2280P4-1

Storage & Interface

Storage

1TB

Interface Mode

NVMe

Interface(s)

PCIe Gen3 x4

PCIe/NVMe Generation

Gen3

Flash Type

3D TLC NAND

Performance

Read Speed (Max.)

3000MB/s

Write Speed (Max.)

2000MB/s

Random Read IOPS

530K

Random Write IOPS

420K

Main Features

Shock Sensor

Yes

Shock Resistance

1500G

Shockproof

Yes

Vibration Resistance

Yes

TRIM Support

Yes

S.M.A.R.T Support

Yes

ECC Support

Up to 72bit/1KB

MTBF

1,500,000 hours

Technical Info

Operating Voltage

3.3 V

Approx. Power Consumption

15W

OS Compatibility

Windows 11/ 10

Physical Description

Form Factor (Inch)

M.2 2280

Dimensions

80 x 22 x 2.38mm

Weight

6.80 gm

Warranty

Warranty Details

3 year

Additional Info

Others

Vibration: Frequency/Displacement: 20Hz – 80Hz/1.52mm, Frequency/Acceleration: 80Hz – 2000Hz/20G, Connector Type: 75-pin M.2 module pinout, Supply Voltage: 3.3 V +/- 5%, Temperature Range: (Operating: 0 to 70 Degree C, Storage: -40 to 85 degree C)

Specialty

Global Wear Leveling, Bad block management, Power Failure Management

Country Of Origin

Taiwan

Made in/ Assemble

Taiwan

Description

The 22mm x 80mm ultra-compact body accommodates up to 1TB of storage space, while the ultra-thin version is only 2.25mm, which gives gamers more space for their other creative set-ups and modifications. It is definitely the top choice for ultra-thin notebooks, esports consoles, and mini-PCs. Apacer  proprietary SSD tuning technology now boosts read-write speeds to 3000/2000 MB/s and IOPS to 360,000 operations per second—by far the best performance in this price bracket.

To ensure users of a perfect high-speed experience, the AS2280P4 SSD has built-in protection technology to ensure data integrity and stability, keeping it stable and fast for longer.
