Specification
| Brand | Antec | |
| Fan Speed | 800-1600RPM ± 10％ | |
| Air Flow | 35 CFM | |
| Noise (dBA) | 25.6 dB(A) | |
| Lifespan | 30,000 hours / 25℃ | |
| Bearing Type | Hydro Bearing | |
| LED Type | ARGB | |
| Input Current | FAN : ≤ 0.10A ± 10% | LED : ≤ 0.26A ± 10% | |
| Operating Voltage/Power Range | FAN: DC 6.0-13.2 V | LED: DC 4.5-5.2 V | |
| Physical Specification | ||
| Color | Black | |
| Size | 120 x 120 x 25 mm | |
| Connector | FAN: 4-pin PWM | LED: 3-pin | |
| Warranty Information | ||
| Manufacturing Warranty | 01 year warranty | |
Description

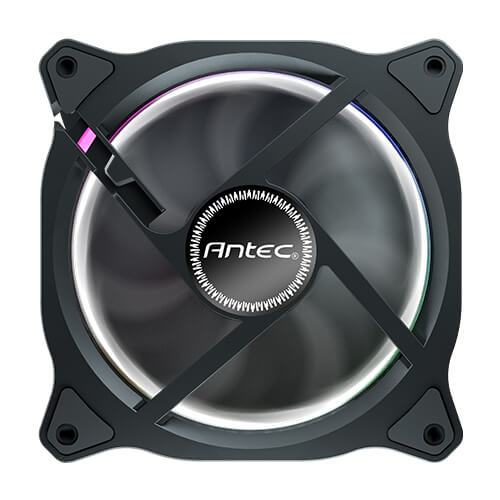

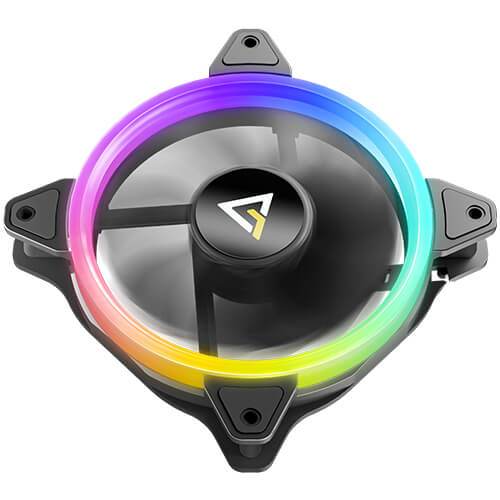

Antec Neon 120 ARGB 3 in 1 Pack Casing Fan with Controller
The Antec Neon 120 PWM ARGB 3 in 1 Pack Casing Fan is a flexible and effective cooling option made to improve your PC build’s looks and performance. The fan speed can be dynamically adjusted based on cooling requirements, ranging from 800 to 1600 RPM with a ±10% fluctuation. Effective heat dissipation is ensured by these fans’ ability to produce an airflow of 35 CFM and air pressure of 1.38 mmH2O. Even with their strong performance, they have a noise level of only 25.6 dB(A). This fan has a 120mm diameter and uses a hydro bearing, which is renowned for its dependability and seamless functioning and has a lifespan of up to 30,000 hours at 25°C. The ARGB (Addressable RGB) lighting on the Antec Neon 120 ARGB Casing Fans adds vivid, adjustable lighting effects to the fan’s visual appearance. An LED connector with three pins can be used to control the illumination, while a 4-pin PWM connector on the fan itself allows the motherboard to control its speed precisely. The DC 6.0-13.2V operating voltage range for the fan and the DC 4.5-5.2V operating voltage range for the LEDs are specified for the Antec Neon 120 ARGB 3 in 1 Pack Casing Fans. The fan motor is rated for a voltage of DC 12V, while the LEDs need DC 5V. Ensuring efficient power usage, the rated currents for the fan and LEDs are respectively < 0.10A ± 10% and ≤ 0.26A ± 10%.
