Specification
| Brand | Antec | |
| Type | Mid Tower | |
| Front Panel | Grill and Mesh Design | |
| Tempered Glass Panel | 4mm Tempered Glass | |
| Motherboard Support | ATX, M-ATX, ITX | |
| External Features | ||
| Color(s) | Black | |
| Material | Steel + Plastic + Glass | |
| Weight | 4.1 Kg | |
| Dimensions | 351 x 206 x 451mm (DWH) | |
| Front Ports | Power, Reset, 2 x USB 2.0, 1 x USB 3.0 , MIC/HD-AUDIO | |
| Expansion Slots | 7 | |
| Radiator Support | Front: 120 / 240mm | |
| Fan Support | Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm Power supply: 2 x 120mm Rear: 1 x 120mm |
|
| Pre- Installed Fans | 3 x 120mm fixed mode RGB fans in front
1 x 120mm fixed mode RGB fan in rear |
|
| Drive Bays | 3.5″ / 2.5″: 2 / 2
2.5″: 2 (motherboard width must be less than 185mm) |
|
| Additional Feature | ||
| PSU | N/A | |
| Side Panel | 4mm Tempered Glass | |
| Clearance Space | ||
| Maximum CPU Cooler Height | ≤ 155mm | |
| Maximum Graphics Card Length | ≤ 270mm (with front fan)
≤ 295mm (without front fan) |
|
| Maximum PSU Length | (Include cable) ≤ 165mm (with HDD)
(Include cable) ≤ 295mm (without HDD) |
|
| Warranty | ||
| Warranty | No Warranty | |
Description

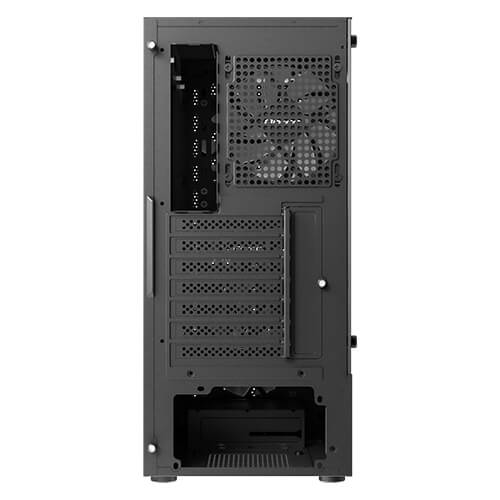

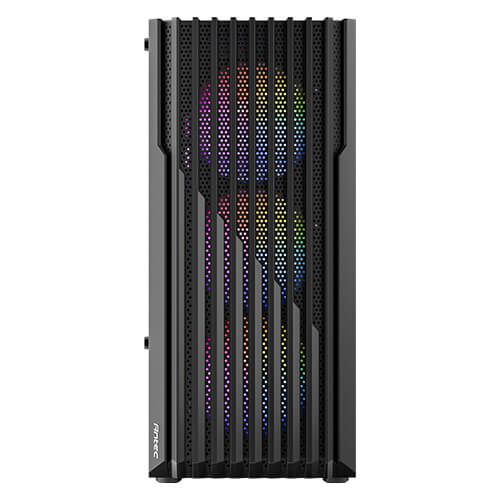

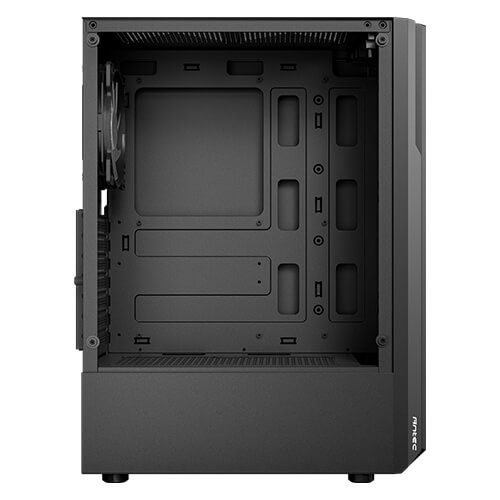

Antec AX22 ELITE RGB ATX Mid-Tower Gaming Casing
The Antec AX22 ELITE RGB ATX Mid-Tower Gaming Casing is designed for enthusiasts seeking a balance of performance and aesthetics. It is made of sturdy steel and plastic and works with multiple mainboard configurations, including ITX, M-ATX, and ATX. Easy access to key controls, such as power and reset, is provided by the front panel, which also features MIC/HD-AUDIO plugs and many ports, including two USB 2.0 and one USB 3.0. A good view of the internals is provided by its stylish 4mm tempered glass side panel. Having seven expansion slots makes it simple to accommodate the configuration you want. To guarantee enough room for your disks, storage options include two 3.5 Inch/2.5 Inch bays and two extra 2.5 Inch bays. The Antec gaming casing has tremendous cooling capacity and comes with pre-installed RGB fans. It can accommodate up to three 120mm fans—two on top, one at the back, and three at the front. For improved cooling effectiveness, the Antec AX22 ELITE RGB ATX Mid-Tower Gaming Casing also supports radiators. GPUs up to 270mm in length (with front fan) or 295mm without, CPU coolers up to 155mm in height, and PSUs up to 165mm in length (with HDD) or 295mm without are all supported by the chassis. The Antec AX22 ELITE RGB ATX Mid-Tower Gaming Casing is a sturdy base for your gaming setup thanks to its elegant and useful design. With its grill air intake design and exceptionally dense mesh, the Antec AX22 ELITE RGB ATX Mid-Tower Gaming Casing dissipates a significant amount of heat. Without any hindrance, you can showcase your gaming setups thanks to the half-view tempered glass side panel. Customers have a variety of cooling options with the Antec AX22 ELITE RGB Mid-Tower Gaming Casing, which can accommodate up to 8 x 120 mm fans at once.
