Specification
| Brand | Antec | |
| Type | Mid Tower | |
| Tempered Glass Panel | Yes | |
| Motherboard Support | ATX, Micro-ATX, ITX | |
| External Features | ||
| Color(s) | Black | |
| Material | Steel+Plastic | |
| Weight | Net Weight: 4 Kgs
Gross Weight: 4.71 Kgs |
|
| Dimensions | 358 x 207 x 451mm (DWH) | |
| Front Ports | Power, Reset, 2 x USB 2.0, 1 XUSB 3.0, MIC / HD-AUDIO | |
| Expansion Slots | 7 | |
| Radiator Support | Front: 120 / 140 / 240 / 280mm | |
| Fan Support | Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm Power supply: 2 x 120mm Rear: 1 x 120mm |
|
| Pre- Installed Fans | 3 x 120 RGB fan in front
1 x 120 RGB fan in rear |
|
| Drive Bays | 3.5″ /2.5″: 2 / 1
2.5″: 2 |
|
| I/O Port | Power, Reset, USB 3.0 x 1, USB 2.0 x 2, MIC, HD-AUDIO | |
| Additional Feature | ||
| PSU | Not Included | |
| Side Panel | Tempered glass | |
| Clearance Space | ||
| Maximum CPU Cooler Height | ≤ 155mm | |
| Maximum Graphics Card Length | ≤ 270mm | |
| Maximum PSU Length | ≤ 170mm(with HDD)
≤ 295mm(without HDD) |
|
| Warranty | ||
| Warranty | No Warranty | |
Description

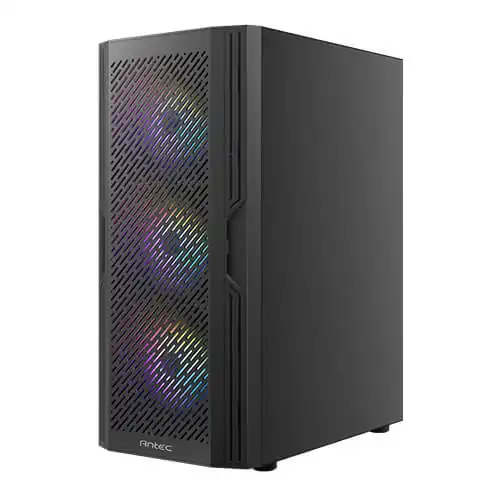

Antec AX20 Elite Mid-Tower ATX Gaming Case
The Antec AX20 Elite is a mid-tower gaming case that supports ATX, Micro-ATX, and ITX motherboards. It has a slanted bar air intake design with a highly dense mesh for maximum heat dissipation. The half-view tempered glass side panel design lets you show off your gaming setups without being hindered. The AX20 Elite supports up to 8 x 120 mm fans simultaneously, giving users a variety of cooling options. It features a sleek and modern design, with a large tempered glass side panel that provides a clear view of the system’s components. The case also has a black exterior with a clean, minimalist look that will complement any gaming setup. The Antec AX20 Elite Mid-Tower Gaming Case supports up to 8 x 120mm fans simultaneously, which provides excellent cooling for high-performance systems. It also features a spacious interior for easy installation of components and a sleek, modern design. This allows for efficient heat dissipation and helps to keep the system running at optimal temperatures. The Antec AX20 Elite supports ATX, Micro-ATX, and Mini-ITX motherboards, and has room for graphics cards up to 270mm in length. This allows for easy installation of high-performance components and provides plenty of room for future upgrades. The Antec AX20 Elite has 2x USB 2.0 ports, 1x USB 3.0 port, an audio in/out, and a power button on top of the case for easy access.
