Specification
| Brand | Antec | |
| Continuous Power | 650 Watt | |
| Fan Size | 120 mm | |
| Input | ||
| Voltage | 200VAC – 240VAC | |
| Frequency Range | 50Hz | |
| Current | 6.3A | |
| Output | ||
| Total Power | 650W | |
| DC Output | +3.3V, +5V, +12V, -12V, +5Vsb | |
| Connector | ||
| Main Power | 1x 24-pin Main Connector | |
| CPU | 1x 8(4+4)pin EPS12V | |
| PCI-E | 2x 8(6+2)pin PCI-E | |
| SATA | 5x SATA | |
| Molex | 3x Molex | |
| Warranty Information | ||
| Manufacturing Warranty | 5 Years | |
Description

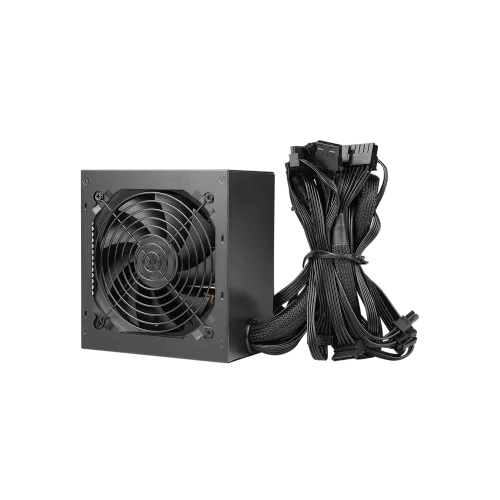

Antec ATOM B650 650W 80 Plus Bronze Power Supply
The Antec ATOM B650 is a 650-watt 80 Plus Bronze Certified power supply unit that comes with a 24-pin connector (520mm in length), an 8-pin connector for EPS12V (4+4-pin) (550mm in length), two 8-pin connectors for PCI-E (6+2-pin) (550mm in length), five 6-pin connectors for SATA (400mm in length each) and two 6-pin connectors for SATA (400mm in length each). The PSU comes with a 120mm silent fan. The 120 mm Silent Fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of operation. It has an AC input voltage of 230VAC, with a frequency range of 47-63Hz and an input current of 5A. The DC output consists of +3.3V, +5V, +12V, -12V, and +5Vsb with maximum current ratings of 18A, 16A, 42A, 0.3A, and 2.5A respectively. The total combined power of the output is 110W, 300W, 3.6W, and 12.5W. The total wattage of the power supply is 650W.
