Specification
Brand
Afox
Model
Afox IH81-MA5
Chipset
Intel H81
Sockets Supported
LGA1150
Built-in Processor
No
Generation
4th
Memory Type
DDR3
Memory Slot
2
Memory Max.
16GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
Integrated With Processor
M.2/SSD Expansion Slot
No
WiFi
No
Form Factor
Micro-ATX
Supported Operating System
Windows 8
Body Color
Blue
Warranty Details
3 year
Description

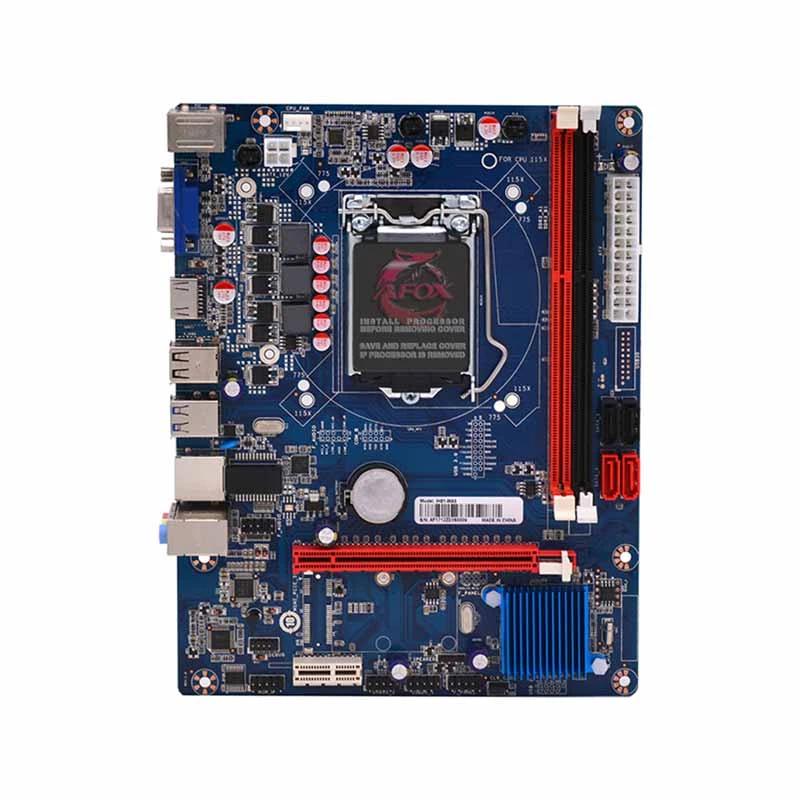

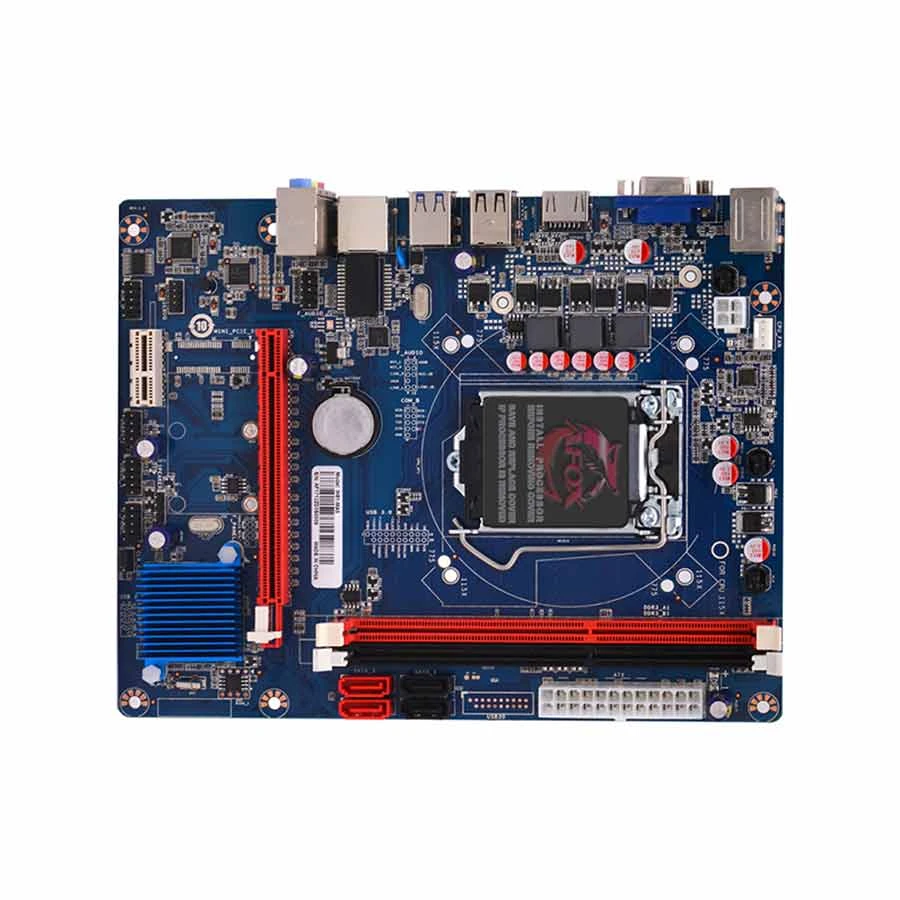

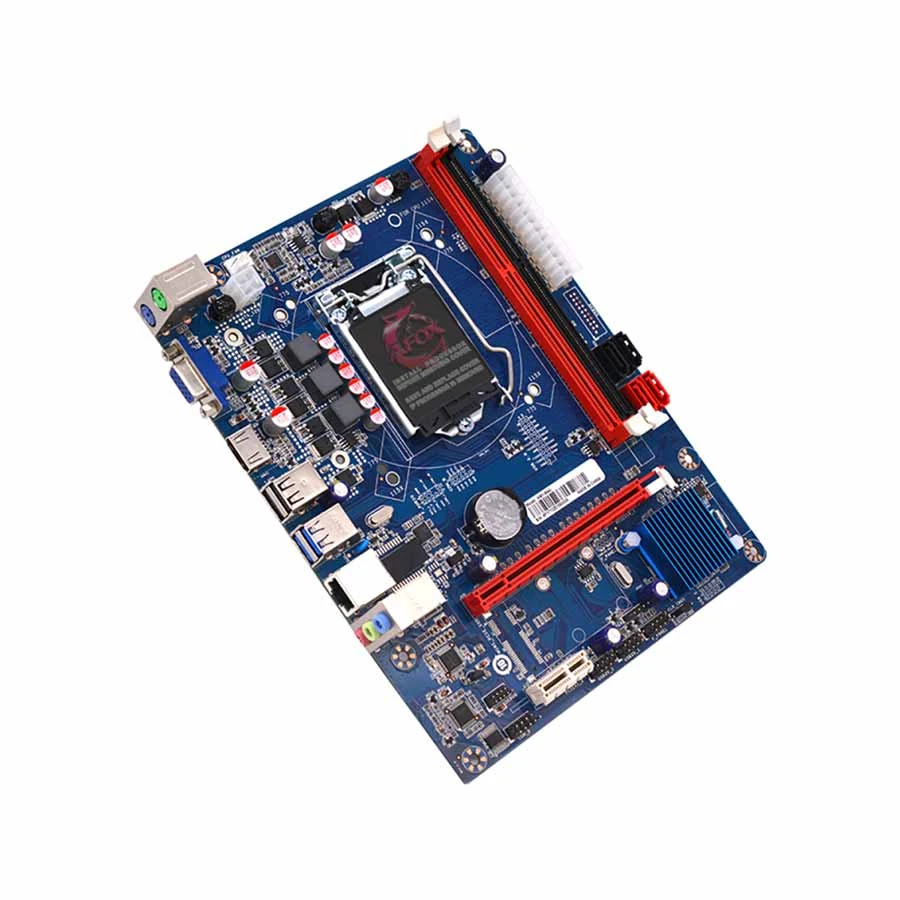

Features of Afox IH81-MA5 Motherboard
Brand – Afox, Model – Afox IH81-MA5, Chipset Brand – Intel, Chipset – Intel H81, CPU Sockets – LGA1150, Built-in Processor – No, Supported CPU – 4th generation Core i7 / Core i5 / Core i3 / Pentium / Celeron / Xeon Processors, Generation – 4th, Memory Type – DDR3, Memory MHz – 1860/ 1600/ 1333/ 1066MHz, Memory Channel – Dual, Memory Slot – 2, Memory Max. – 16GB, Optane Memory Support – No, Graphics – Integrated, Graphics Chipset – Integrated With Processor, Multi-GPU Support – No, Storage Interface – 6.0Gb/s, M.2 Slot – No, LAN Speed (Mbps) – 10/100/1000Mbps, Wi-Fi – No, Bluetooth – No, USB Port – 2 x USB 3.0 Type-A, 2 x USB 2.0 Type-A, VGA Port – 1, DVI Port – No, HDMI Port – 1, DisplayPort (DP) – No, SATA Port – 4 x SATA, FireWire – No, CrossFire Support – No, Sli Support – No, Thunderbolt – No, RGB Support – No, Approx. Power Consumption – 60W, Form Factor – Micro-ATX, Supported Operating System – Windows 8, Body Color – Blue, Compatible Products – Compatible with 4th generation Core i7 / Core i5 / Core i3 / Pentium / Celeron / Xeon Processors, Warranty – 3 Years.
