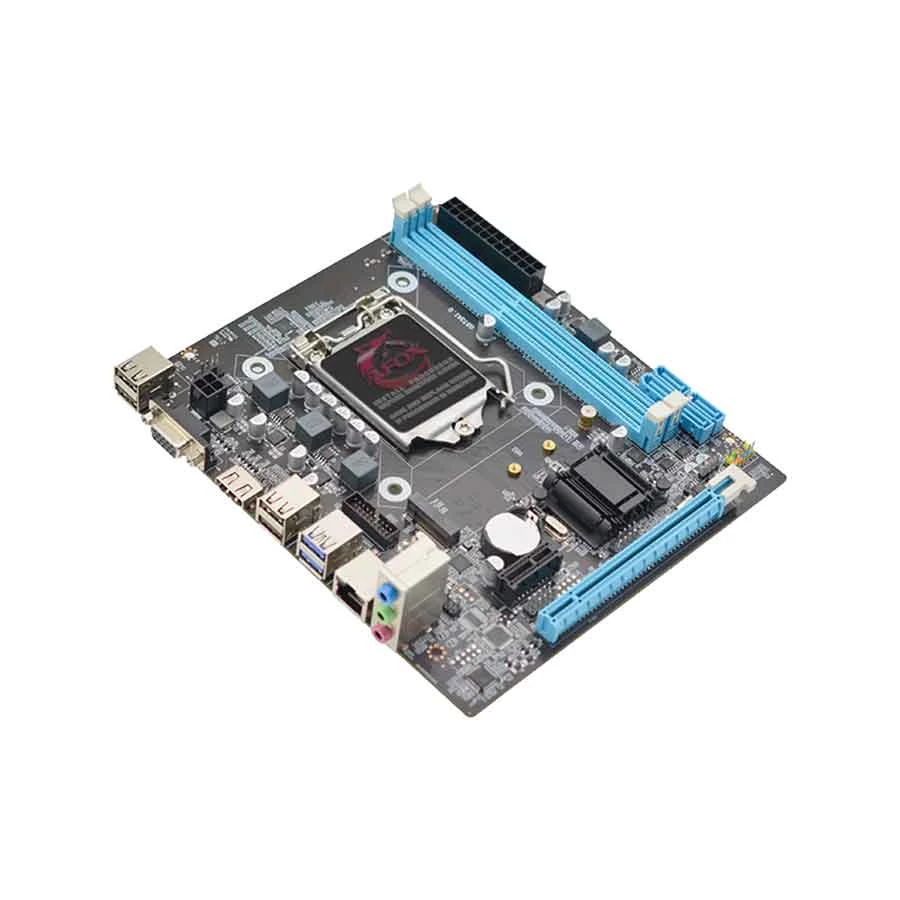

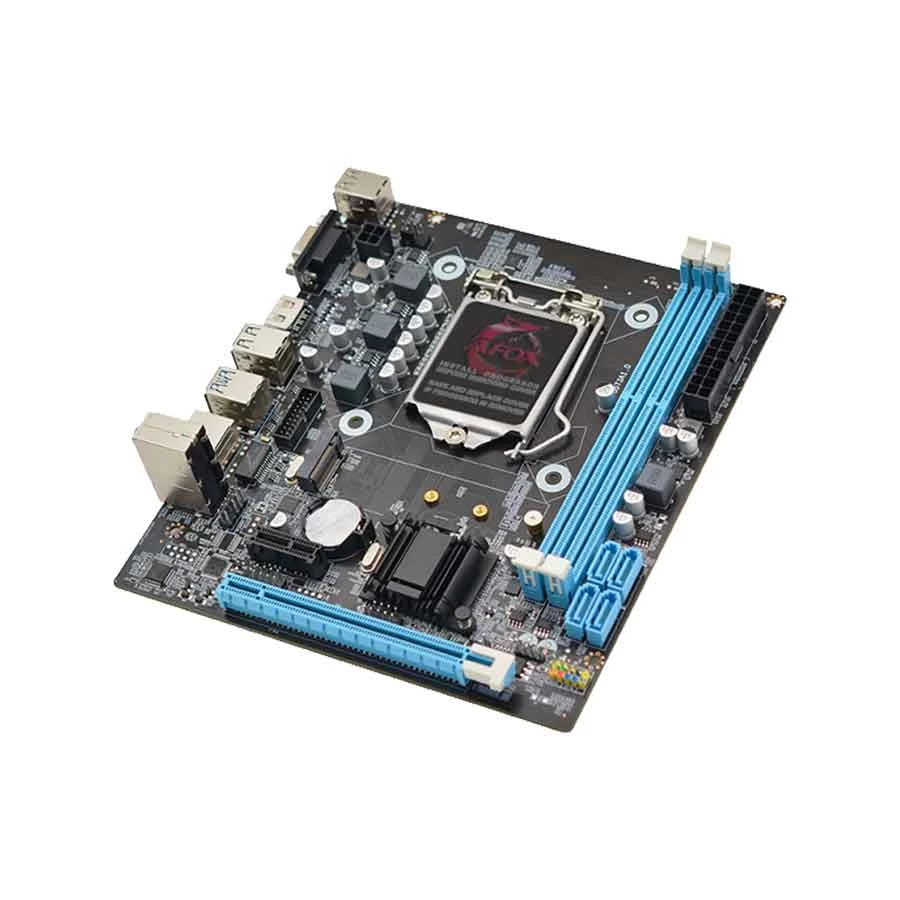

Afox IH81-MA2-V3 DDR3 Intel LGA1150 Socket Motherboard

Specification

Brand

Afox

Model

Afox IH81-MA2-V3 Motherboard

Chipset

Intel H81

Sockets Supported

LGA1150

Built-in Processor

No

Generation

4th

Memory Type

DDR3

Memory Slot

2

Memory Max.

16GB

Optane Memory Support

No

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

1

WiFi

No

Form Factor

Micro-ATX

Supported Operating System

Windows 8

Body Color

Black

Warranty Details

3 year

Description

Features of Afox IH81-MA2-V3 Motherboard Motherboard

Brand – Afox, Model – Afox IH81-MA2-V3, Chipset Brand – Intel, Chipset – Intel H81, CPU Sockets – LGA1150, Supported CPU – Intel 4th generation Core i7, Core i5, Core i3, Pentium, Celeron, Xeon Processors., Generation – 4th, Memory Type – DDR3, Memory MHz – 1066 / 1333 / 1600 / 1860MHz, Memory Channel – Dual, Memory Slot – 2, Memory Max. – 16GB, Optane Memory Support – No, Graphics – Integrated, Graphics Chipset – Integrated With Processor, PCI Express Slot – 1 x PCI Express x16 2.0 slot, 1 x PCI Express x1 slot, Storage Interface – 6Gb/s, M.2 Slot – 1 x M.2 (PCIe NVMe Gen3 x4 ), LAN Chipset – Realtek RTL8105/8106, LAN Speed (Mbps) – 10/100Mbps, Audio Chipset – Realtek 662, Audio Channel – 6 Channel, Wi-Fi – No, USB Port – 2 x USB 3.0, 4 x USB 2.0, VGA Port – 1, DVI Port – No, HDMI Port – 1, DisplayPort (DP) – No, IDE Port – No, SATA Port – 4, BIOS Model – UEFI BIOS, CrossFire Support – No, Sli Support – No, Raid Support – No, Thunderbolt – No, TPM Port – No, COM Port – No, RGB Support – No, Approx. Power Consumption – 60W, Form Factor – Micro-ATX, Supported Operating System – Windows 8, Body Color – Black, Warranty – 3 Years.
