Specification
Brand
Afox
Model
Afox IH610D4-MA-V2
Chipset
Intel H610
Sockets Supported
LGA1700
Built-in Processor
No
Generation
12th/13th/14th
Memory Type
DDR4
Memory Slot
2
Memory Max.
64GB
Optane Memory Support
No
Graphics
Integrated
Graphics Chipset
Intel HD Graphics support
M.2/SSD Expansion Slot
1
WiFi
No
Bluetooth
No
Form Factor
Micro-ATX
Supported Operating System
Windows 10/11
Body Color
Grey
Warranty Details
3 year
Description

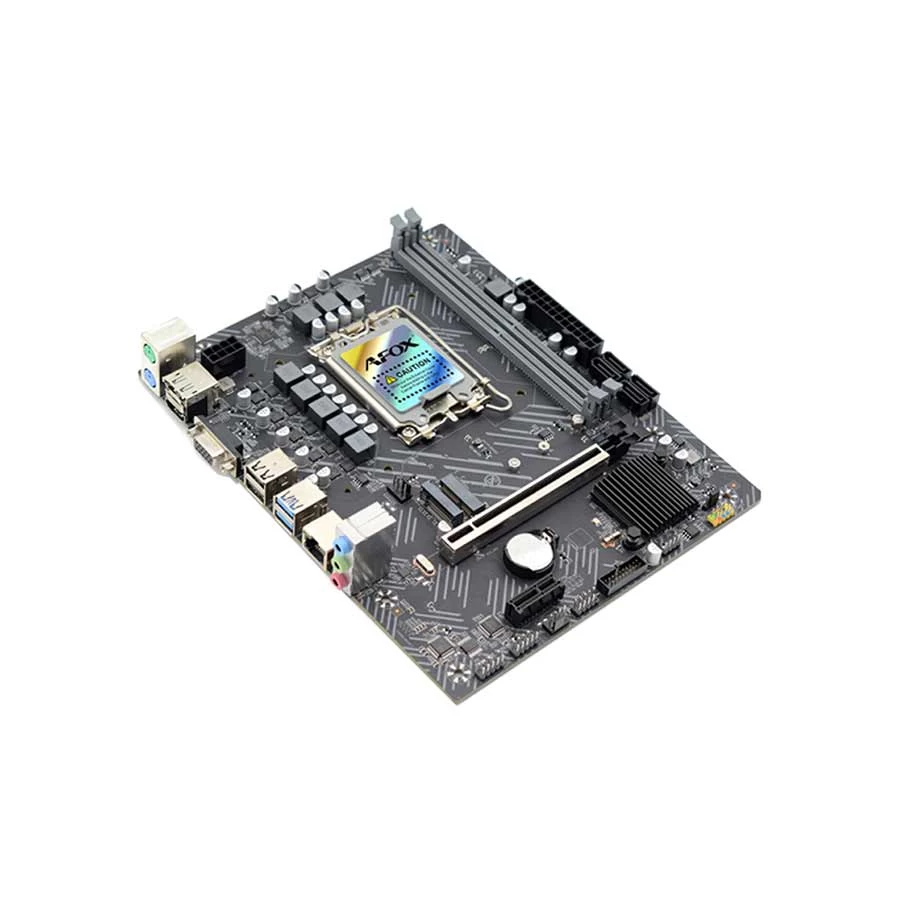

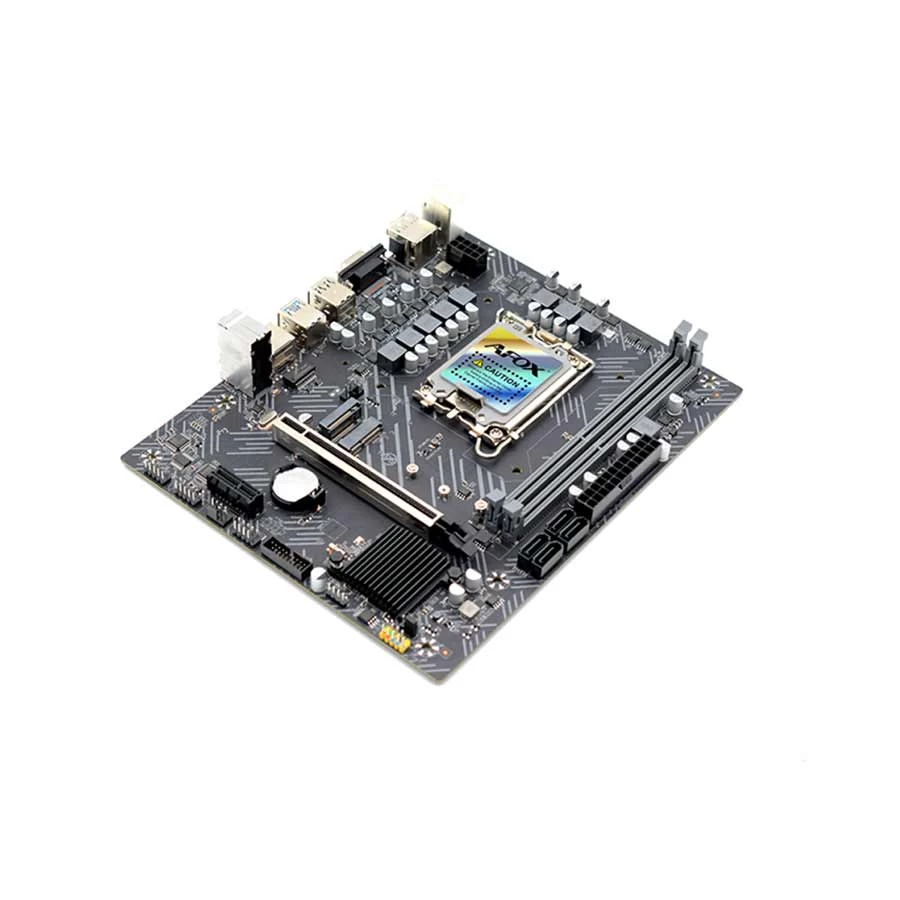

Features of Afox IH610D4-MA-V2 Motherboard In Bangladesh
Brand – Afox, Model – Afox IH610D4-MA-V2, Chipset Brand – Intel, Chipset – Intel H610, CPU Sockets – LGA1700, Built-in Processor – No, Supported CPU – Intel 12th/13th/14th Gen Core i9, Core i7, Core i5, Core i3, Pentium, Celeron Processors, Generation – 12th/13th/14th, Memory Type – DDR4, Memory MHz – 2133 / 2400 / 2666 / 2800(O.C) / 3000(O.C) / 3200(O.C)MHz, Memory Channel – Dual, Memory Slot – 2, Memory Max. – 64GB, Optane Memory Support – No, Graphics – Integrated, Graphics Chipset – Intel HD Graphics support, PCI Express Slot – 1 x PCI Express x16 4.0 slot, 1 x PCI Express x1 slot, 1 x Mini PCI-E Slot (Supports 4G/WIFI Module), M.2 Slot – 1 x M.2 (PCIe NVMe Gen3 x4), LAN Speed (Mbps) – 1000Mbps, Audio Channel – 6-channel, Wi-Fi – No, Wi-Fi Technology – No, Bluetooth – No, USB Port – 2 x USB 3.0 Ports, 2 x USB 2.0 Ports, VGA Port – 1, DVI Port – No, HDMI Port – 1, DisplayPort (DP) – No, IDE Port – No, SATA Port – 4, BIOS Model – UEFI BIOS, CrossFire Support – No, Sli Support – No, Thunderbolt – No, TPM Port – No, COM Port – No, RGB Support – No, RGB Sync – No, RGB Connector – No, Approx. Power Consumption – 60W, Form Factor – Micro-ATX, Supported Operating System – Windows 10/11, Body Color – Grey, Special Features – Intel H610 Express Chipset, Supports 12th Generation Intel Core Processor, Dual-Channel DDR4 2133 / 2400 / 2666 / 2800(O.C) / 3000(O.C) / 3200(O.C) MHz support, Gigabit LAN, PCI Express 4.0 Architecture, USB 3.0, Microsoft Windows 10/11 compatible., Others – 4 x SATA III, 1 x M.2 (PCIe NVMe Gen3 x4), 1000Mbps Ethernet on board, Back Panel I/Os – 1 x D-Sub (VGA) Port, 1 x HDMI, 1 x PS/2 Mouse Port, 1 x PS/2 Keyboard Port, 2 x USB 3.0 Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 3 x HD Audio Jack (Line in / Front Speaker / Microphone), ON-Board Pinheaders/Connectors – 1 x USB 2.0 pin header (supports additional 2 USB 2.0s), 1 x USB 3.0 pin header (supports additional 2 USB 3.0s) , 1 x Front Panel Audio pin header, 1 x Com. Mounting – 6 mounting holes. Accessories – 1 x SATA II cable, 1 x I/O Rear Panel, 1 x User Manual, 1 x Driver CD., Compatible Products – Core i3 12100F, Core i3 12100, Core i5 12400F, Core i5 12400,Core i5 12500, Core i7 12700, Core i7 12700K, Core i9 12900K, Core i9 12900 KS, Warranty – 3 Years.
