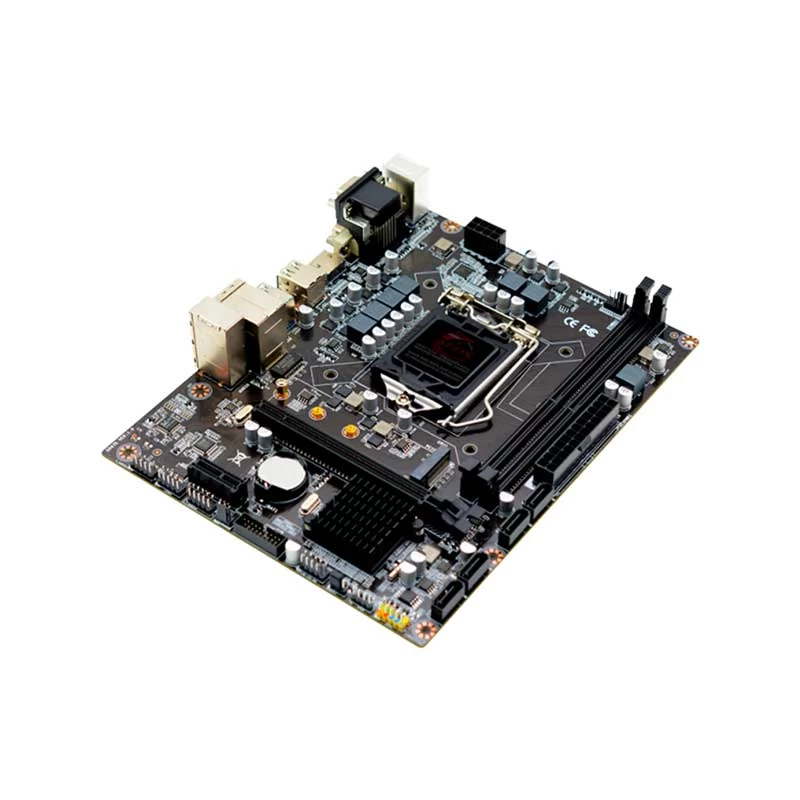

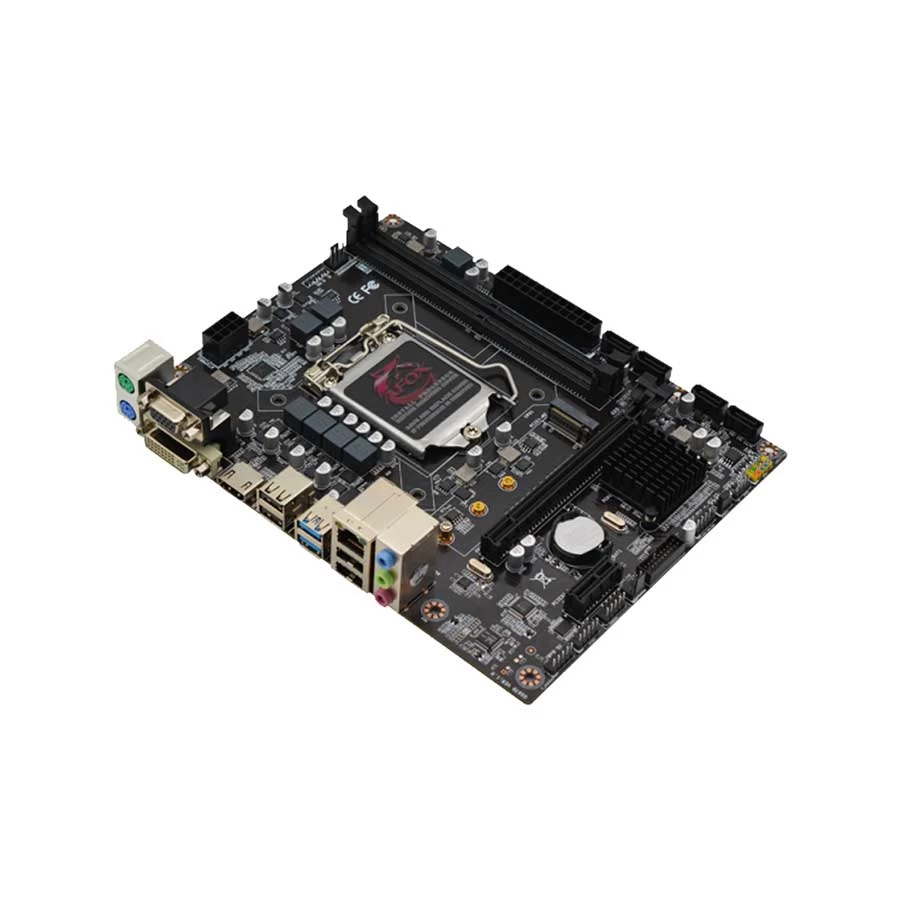

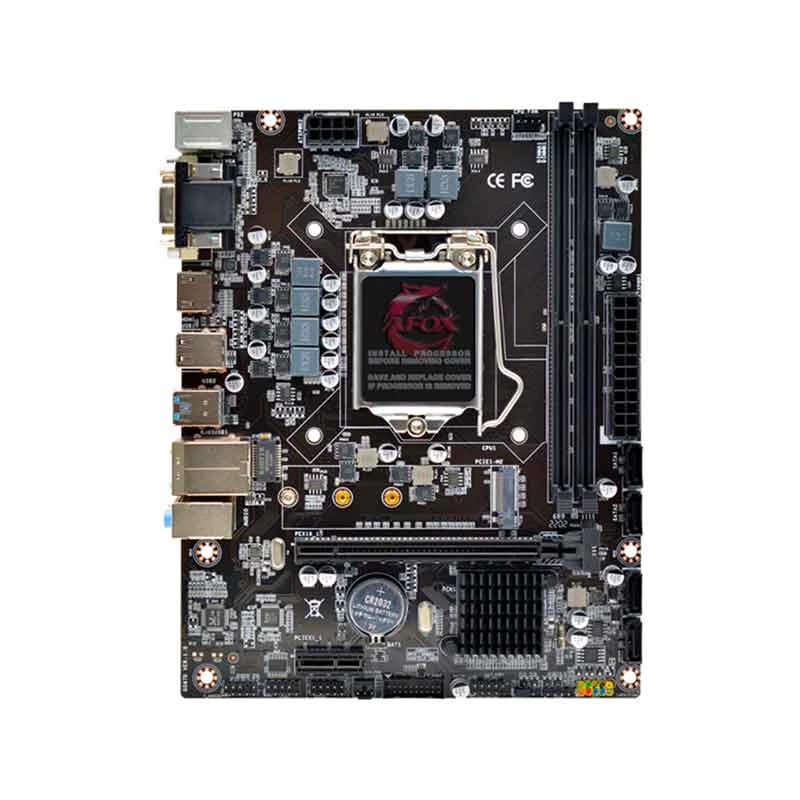

Afox IH510-MA2-V2 DDR4 10th/11th Gen Intel LGA 1200 Socket Motherboard

Specification

Brand

Afox

Model

Afox IH510-MA2-V2

Chipset

Intel H510

Sockets Supported

LGA1200

Built-in Processor

No

Generation

10th/11th

Memory Type

DDR4

Memory Slot

2

Memory Max.

64GB

Optane Memory Support

No

Graphics

Integrated

Graphics Chipset

Intel HD Graphics support

M.2/SSD Expansion Slot

1

WiFi

No

Bluetooth

No

Form Factor

Micro-ATX

Body Color

Grey

Warranty Details

3 year

Description

Features of Afox IH510-MA2-V2 Motherboard In Bangladesh

Brand – Afox, Model – Afox IH510-MA2-V2, Chipset Brand – Intel, Chipset – Intel H510, CPU Sockets – LGA1200, Supported CPU – Intel 10th /11th Generation, Generation – 10th/11th, Memory Type – DDR4, Memory MHz – 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz, Memory Channel – Dual, Memory Slot – 2, Memory Max. – 64GB, Optane Memory Support – No, Graphics – Integrated, Graphics Chipset – Intel HD Graphics support, PCI Express Slot – 1 x PCI Express x16 4.0 slot, 1 x PCI Express x1 slot, M.2 Slot – 1 x M.2, PCIe NVMe Gen3 x4, LAN Chipset – Realtek RTL8111, LAN Speed (Mbps) – 1000Mbps, Audio Chipset – Realtek 662, Audio Channel – 6, Wi-Fi – No, Bluetooth – No, USB Port – 2 x USB 3.0, 4 x USB 2.0, VGA Port – 1, DVI Port – 1, HDMI Port – 1, IDE Port – No, SATA Port – 4, BIOS Model – UEFI BIOS, CrossFire Support – No, Sli Support – No, Thunderbolt – No, COM Port – 1, RGB Support – No, Approx. Power Consumption – 60W, Form Factor – Micro-ATX, Body Color – Grey, Warranty – 3 Years .
