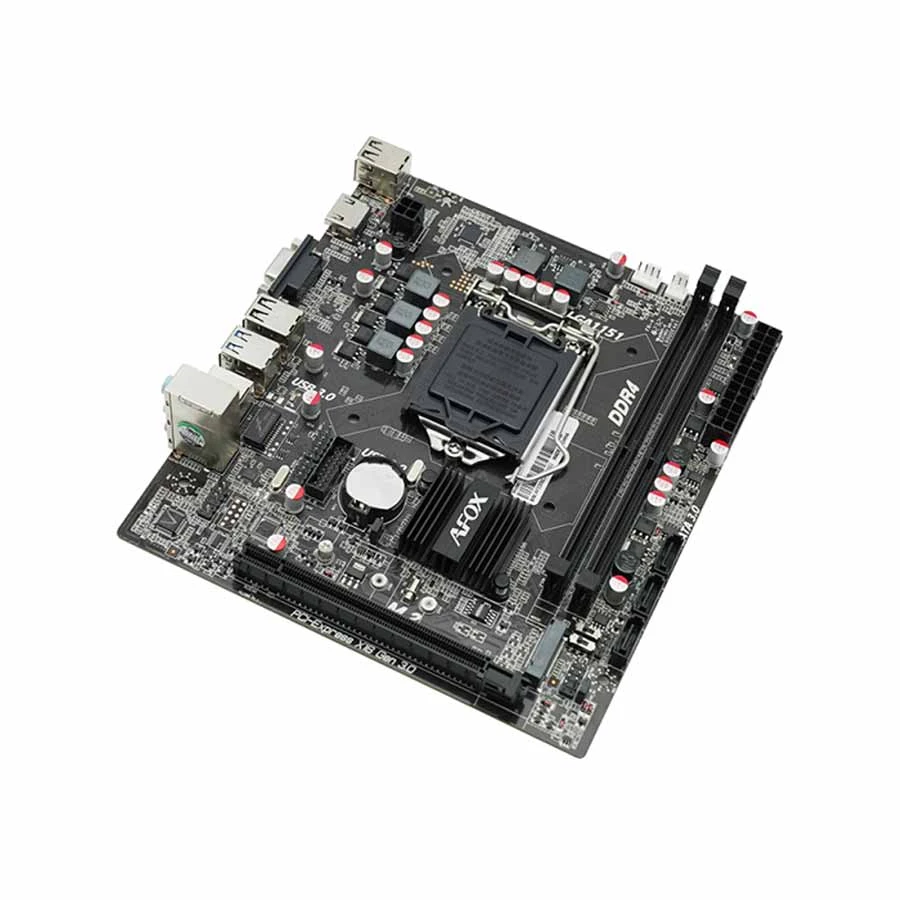

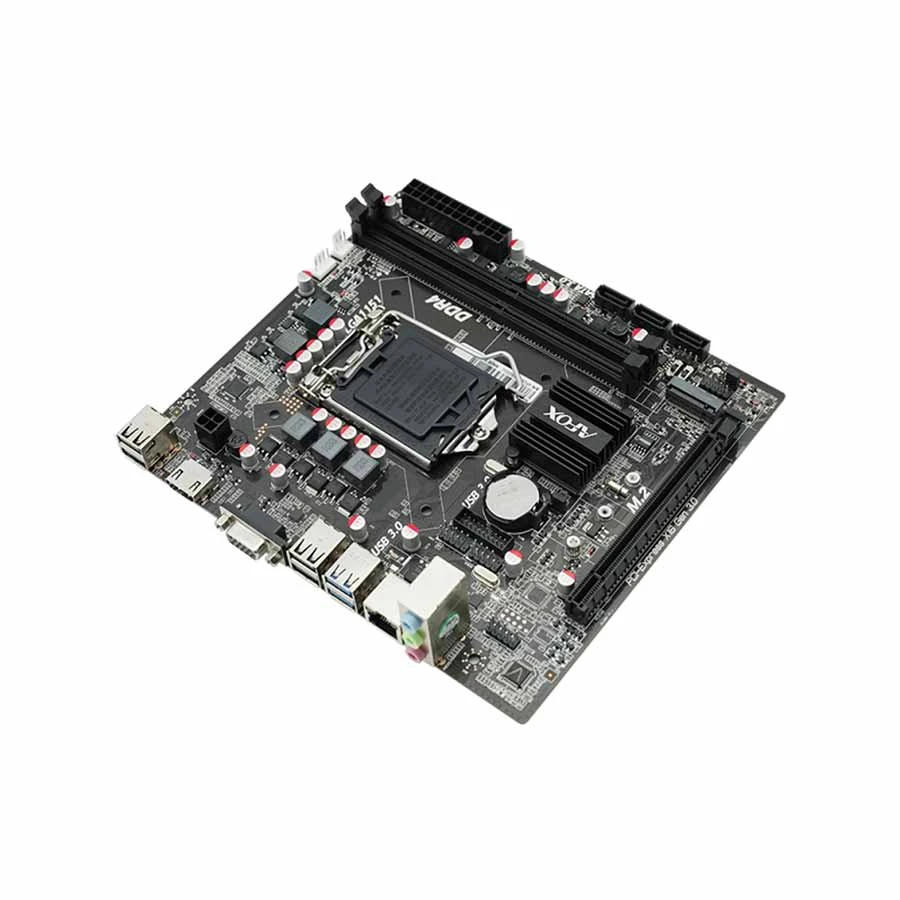

Afox IH110D4-MA5-V4 DDR4 6th/7th/8th/9th Gen Intel LGA1151 Socket Motherboard

Specification

Brand

Afox

Model

Afox IH110D4-MA5-V4

Chipset

Intel H110

Sockets Supported

LGA1151

Built-in Processor

No

Generation

6th/7th/8th/9th

Memory Type

DDR4

Memory Slot

2

Memory Max.

64GB

Optane Memory Support

No

Graphics

Integrated

Graphics Chipset

Integrated with Processor

M.2/SSD Expansion Slot

1

WiFi

No

Bluetooth

No

Form Factor

Micro-ATX

Body Color

Black

Warranty Details

3 year

Description

Afox IH110D4-MA5-V4 DDR4 6th/7th/8th/9th Gen Intel LGA1151 Socket Motherboard

Brand – Afox, Model – Afox IH110D4-MA5-V4, Chipset Brand – Intel, Chipset – Intel H110, CPU Sockets – LGA1151, Built-in Processor – No, Supported CPU – 6th, 7th, 8th and 9th Generation Intel Core i7 / Core i5 / Core i3 / Pentium / Celeron processors., Generation – 6th/7th/8th/9th, Memory Type – DDR4, Memory MHz – 2133 / 2400 / 2666MHz, Memory Channel – Dual, Memory Slot – 2, Memory Max. – 64GB, Optane Memory Support – No, Graphics – Integrated, Graphics Chipset – Integrated with Processor, Multi-GPU Support – No, PCI Express Slot – 1 x PCI Express x16 3.0 slot, Storage Interface – SATA 6Gb/s, M.2 Slot – 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3), LAN Chipset – Realtek RTL8111, LAN Speed (Mbps) – 0/100/1000Mbps, Audio Chipset – Realtek 662, Audio Channel – 6-channel, Wi-Fi – No, Bluetooth – No, USB Port – 2 x USB 3.0, 4 x USB 2.0, VGA Port – 1, DVI Port – No, HDMI Port – 1, DisplayPort (DP) – No, IDE Port – No, SATA Port – 3, BIOS Model – UEFI BIOS, CrossFire Support – No, Sli Support – No, Thunderbolt – No, RGB Support – No, Approx. Power Consumption – 60W, Form Factor – Micro-ATX, Body Color – Black, Special Features – Dual-Channel DDR4 2133MHz Memory up to 32GB. SATA 6Gb/s, PCI Express Architecture, USB 3.0, Microsoft Windows 8 compatible. High speed USB interface, High quality audio special capacitor+ independent audio block LED isolation line, Design of Gigabit high-speed network card, Excellent in multitasking a wise choice for gaming players, Excellent compatibility, Stable power supply smooth game performance., Others – SATA: 3 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3). RJ-45 LAN Port with LED, 3 HD Audio Jacks (Line in / Front Speaker / Microphone). ON-Board Pinheaders/Connectors: 1 x USB 2.0 pin header (supports additional 2 USB 2.0s), 1 x USB 3.0 pin header (supports additional 2 USB 3.0s) , 1 x Front Panel Audio pin header, 1 x LPC DEBUG, 1 x Com. Form Factor: Micro-ATX (17*19cm). Mounting: 4 mounting holes. Accessories: 1 x SATA II cable, 1 x I/O Rear Panel, 1 x User Manual, 1 x Driver CD., Compatible Products – 6th, 7th, 8th and 9th Generation Intel Core i7 / Core i5 / Core i3 / Pentium / Celeron processors. (CPU up to 95 watts), Warranty – 3 Years.
