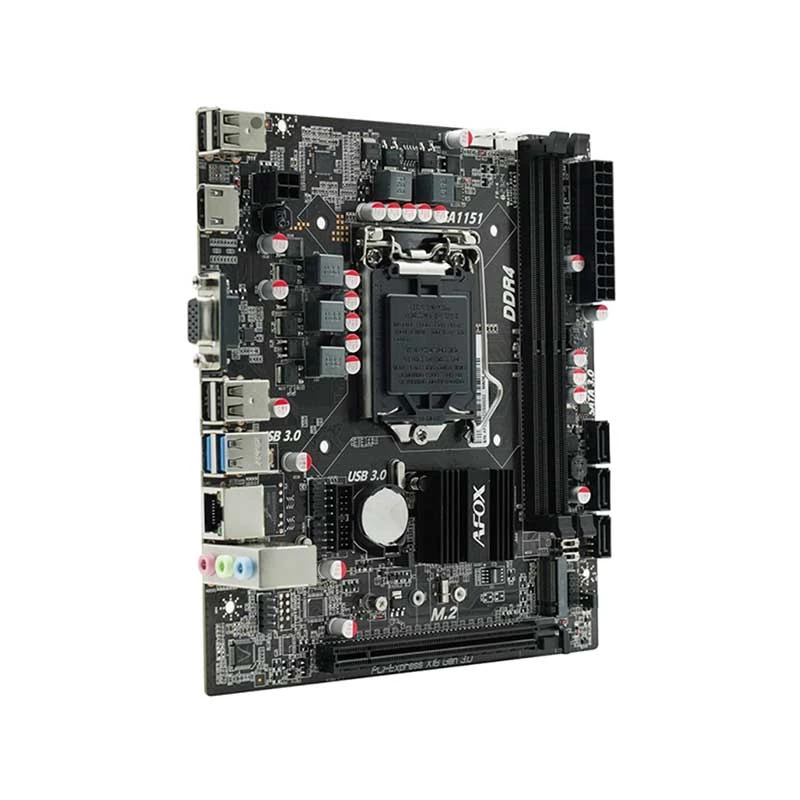

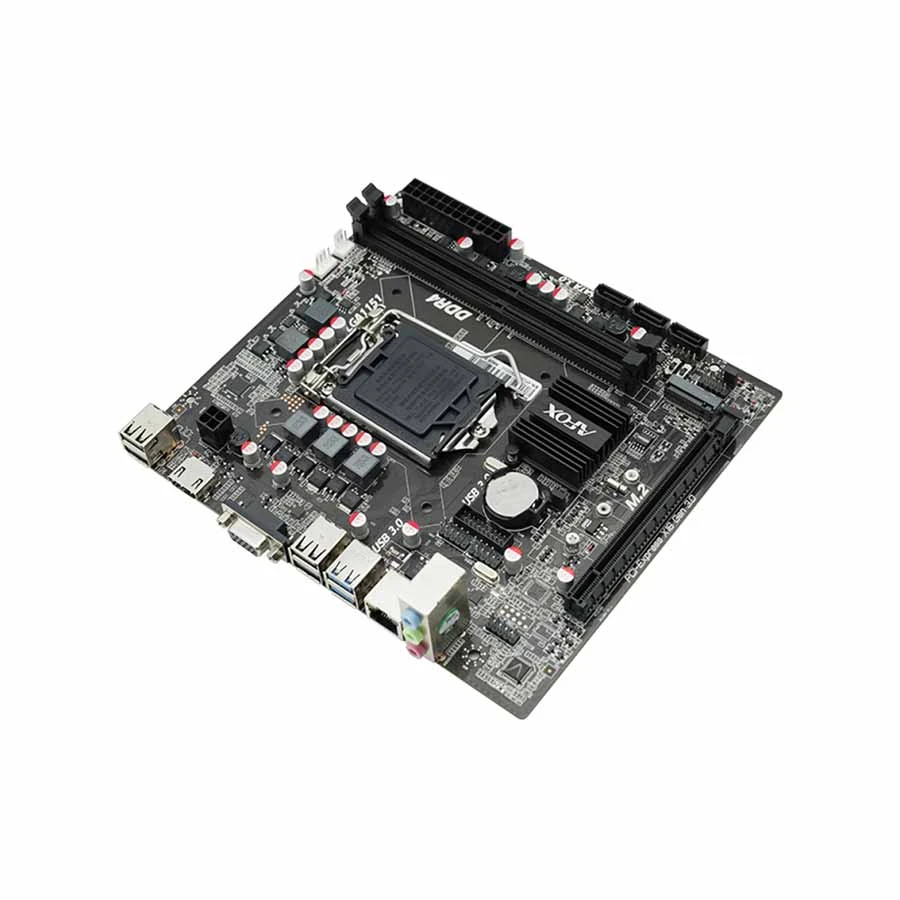

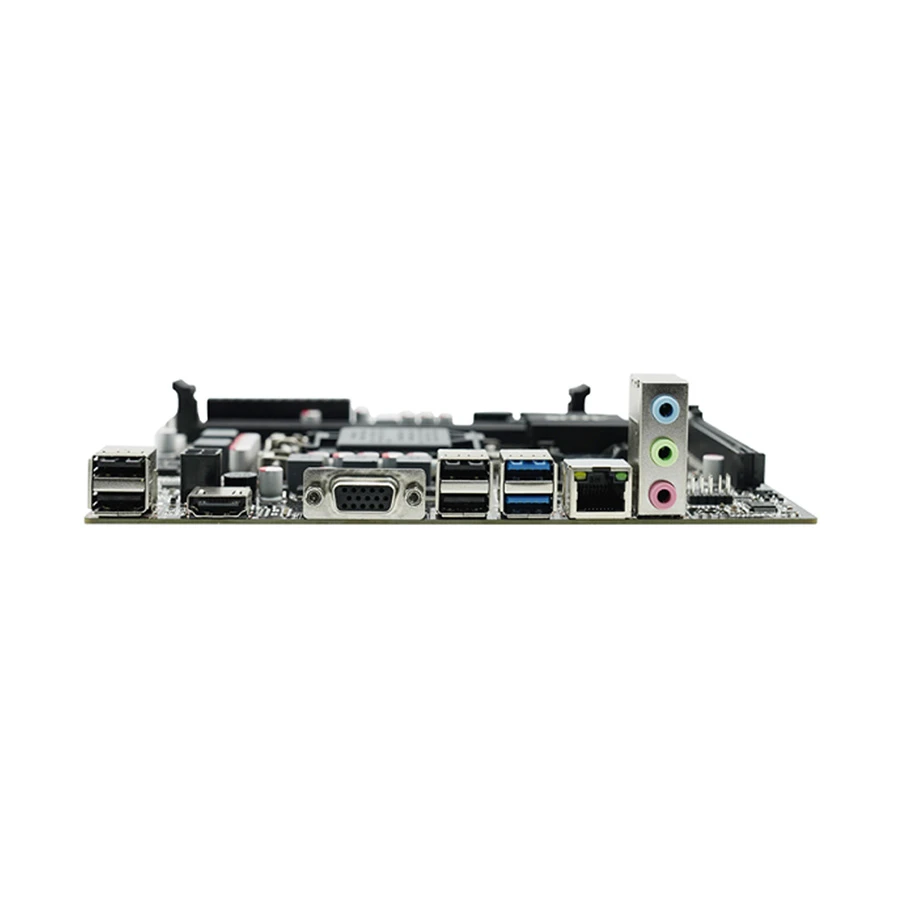

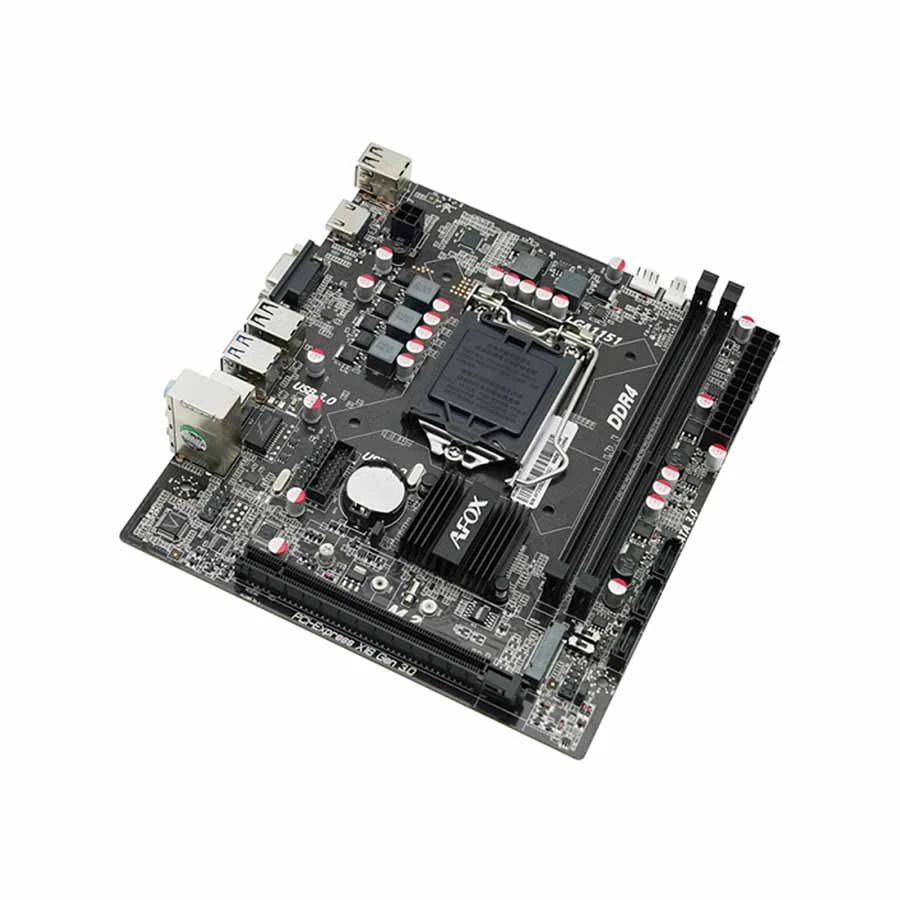

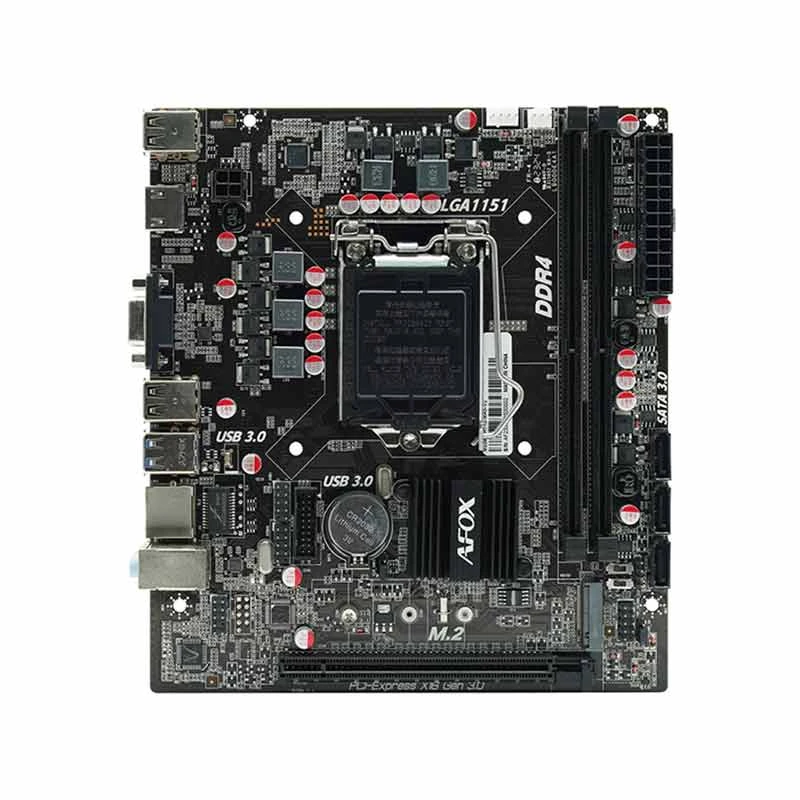

Afox IH110D4-MA5-V2 DDR4 6th/7th/8th/9th Gen Intel LGA1151 Socket Motherboard

Specification

Brand

Afox

Model

Afox IH110D4-MA5-V2

Chipset

Intel H110

Sockets Supported

LGA1151

Generation

6th/7th/8th/9th

Back-Connect Design

No

Memory Type

DDR4

Memory Slot

2

Memory Max.

32GB

Optane Memory Support

No

Graphics

Integrated

Graphics Chipset

Intel HD Graphics support

M.2/SSD Expansion Slot

1

WiFi

No

Bluetooth

No

Form Factor

Micro-ATX

Supported Operating System

Windows 8

Body Color

Gray

Warranty Details

3 year

Description

Features of Afox IH110D4-MA5-V2 Motherboard

Brand – Afox, Model – Afox IH110D4-MA5-V2, Chipset Brand – Intel, Chipset – Intel H110, CPU Sockets – LGA1151, Supported CPU – Intel Core i7, Core i5, Core i3, Pentium, Celeron processors Supports Intel 6th, 7th, 8th and 9th Generation, Generation – 6th/7th/8th/9th, Back-Connect Design – No, Memory Type – DDR4, Memory MHz – 2133MHz, Memory Channel – Dual-Channel, Memory Slot – 2, Memory Max. – 32GB, Optane Memory Support – No, Graphics – Integrated, Graphics Chipset – Intel HD Graphics support, Multi-GPU Support – No, PCI Express Slot – 1 x PCI Express x16 3.0, Storage Interface – 6.0Gbp/s, M.2 Slot – 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3), LAN Chipset – Realtek RTL8111, LAN Speed (Mbps) – 10 / 100 / 1000Mbps, Audio Chipset – Realtek 662, Audio Channel – 6-channel, Wi-Fi – No, Bluetooth – No, USB Port – 2 x USB 3.0, 4 x USB 2.0, VGA Port – 1, DVI Port – No, HDMI Port – 1, DisplayPort (DP) – No, IDE Port – No, SATA Port – 3 x SATA3, BIOS Model – UEFI BIOS, FireWire – No, CrossFire Support – No, Sli Support – No, Thunderbolt – No, RGB Support – No, Approx. Power Consumption – 65W, Form Factor – Micro-ATX, Supported Operating System – Windows 8, Body Color – Gray, Special Features – High speed USB interface. High quality audio special capacitor+ independent audio block LED isolation line. Design of Gigabit high-speed network card. Excellent in multitasking a wise choice for gaming players. Excellent compatibility. Stable power supply smooth game performance., Others – Back Panel I/Os: 1 x RJ-45 LAN Port with LED, 3 x HD Audio Jacks (Line in / Front Speaker / Microphone), ON-Board  Pinheaders/Connectors: 1 x Front Panel Audio pin header, 1 x LPC DEBUG, Mounting: 4 mounting holes., Compatible Products – 6th, 7th, 8th and 9th Gen Intel Core i7 / Core i5 / Core i3/ Pentium/ Celeron Processors, Warranty – 3 Years.
