Specification
| Brand | 1STPLAYER | |
| Continuous Power | Output Capacity: 400/500/600 W | |
| Efficiency (Approx.) | 85% @ Typical Load | |
| Certification | 80 PLUS BRONZE
Regulatory: CE/FCC/C-Tick/ROHS/CCC/cTUVus/IEC/EAC Protections: UVP, OVP, OPP, SCP, Lightning Protection |
|
| Fan Size | 120MM Hydraulic Bearing | |
| Others | Active PFC
Operation Temperature: 0~40℃ MTBF: 100,000 hours Circuit Structure: Double Forward Net Weight: 2.2kg Gross Weight: 2.6kg Dimensions(L*W*H): 140*150*86 MM |
|
| Input | ||
| Voltage | 100-240 VAC | |
| Frequency Range | 50-60Hz | |
| Current | 10A MAX | |
| Output | ||
| Modular Type | 500/600 Full Modular | |
| Peak Power | 600 W | |
| Warranty Information | ||
| Manufacturing Warranty | 3-years | |
Description

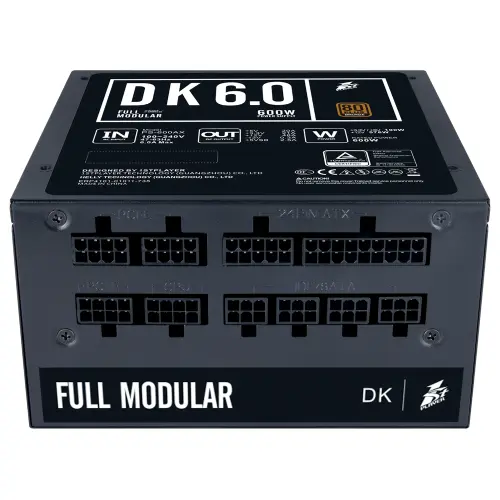

1STPlayer PS-600AX Bronze Full Modular Power Supply
1STPlayer PS-600AX Bronze Full Modular Power Supply is a 80 PLUS Bronze rated power supply, it has an upgraded performance with more powerful features. The DK 6.0 Full modular power supply gives maximum output capacity of 600W rated power and included with 12CM cooling fan , flat cable and full voltage output. The PS-600AX Power supply works with AC input power of 100-240V, with 47-63Hz frequency and 6.0A Max current capacity. With full range voltage and SCP function, when the power is cut off under abnormal condition. DK 5.0 will activate the power potection function to protect the PSU and motherboard effectively.1STPlayer PS-600AX Bronze Full Modular Power Supply comes with a modular design that can issue cable when upgrading GPU, multiple hard drives and case fans. Also, you can add/remove cable as their demand. Moreover, full modular design delivers a convenient cable management. Users can save space with flat cable that results in a nice-looking back routing. Mainly, CPU decides the computing power whether in a smartphone or a PC. In a similar way, the structure of a PSU decides the main performance like efficiency, temp. With double forward and active PFC, DK4.0 ensures a supreme performance.1ST Player PS-600AX Bronze Full Modular Power Supply has a output voltage of 12V that can be rated over 90% of the total power, reacting the high level of real power. Enthusiastic gamers always pursue an ultimate gaming experience. the powerful and stable output of DK 4.0 ensures the smooth operation. Moreover, 90% of the output efficiency of the single +12V rails can fulfill the power supply requirement towards the Graphics card and overclock as they wish.
